Specs
Models

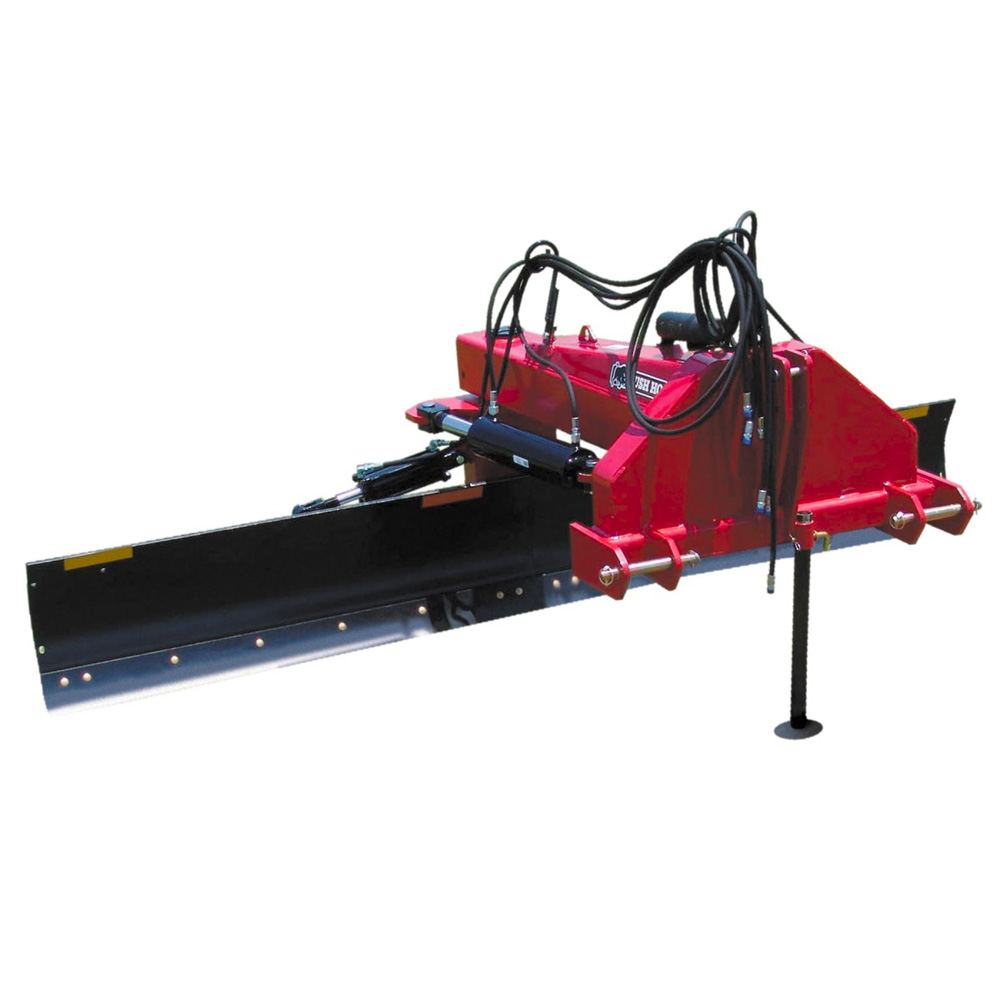

225 SERIES
MOLDBOARD WIDTH
8, 10 & 12 ft.
MOLDBOARD HEIGHT AND THICKNESS
20 in. x 1/2 in.
MOLDBOARD CUTTING EDGE
1/2 in. x 6 in.
HITCH
3-Pt. Cat. lI & III I Quick Hitch
APPROXIMATE WEIGHT
2120 lbs. (8 ft.), 2260 lbs. (10 ft.), 2400 lbs. (12 ft.)
MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE
8 ft. 250 HP, 10 ft. 225 HP, 12 ft. 175 HP
MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST
8 ft. 225 HP, 10 ft. 200 HP, 12 ft. 160 HP
KING PIN DIAMETER
4 1/2 in.
TILT ADJUSTMENT
15º up or down (hydraulic)
OFFSET ADJUSTMENT
46 in. left or right (hydraulic)
ANGLE ADJUSTMENT
45º left or right (in forward and reverse position, hydraulic)
SKID SHOES
Optional
END PLATES
Optional
PARKING STAND
Standard
HYDRAULICS
Standard
