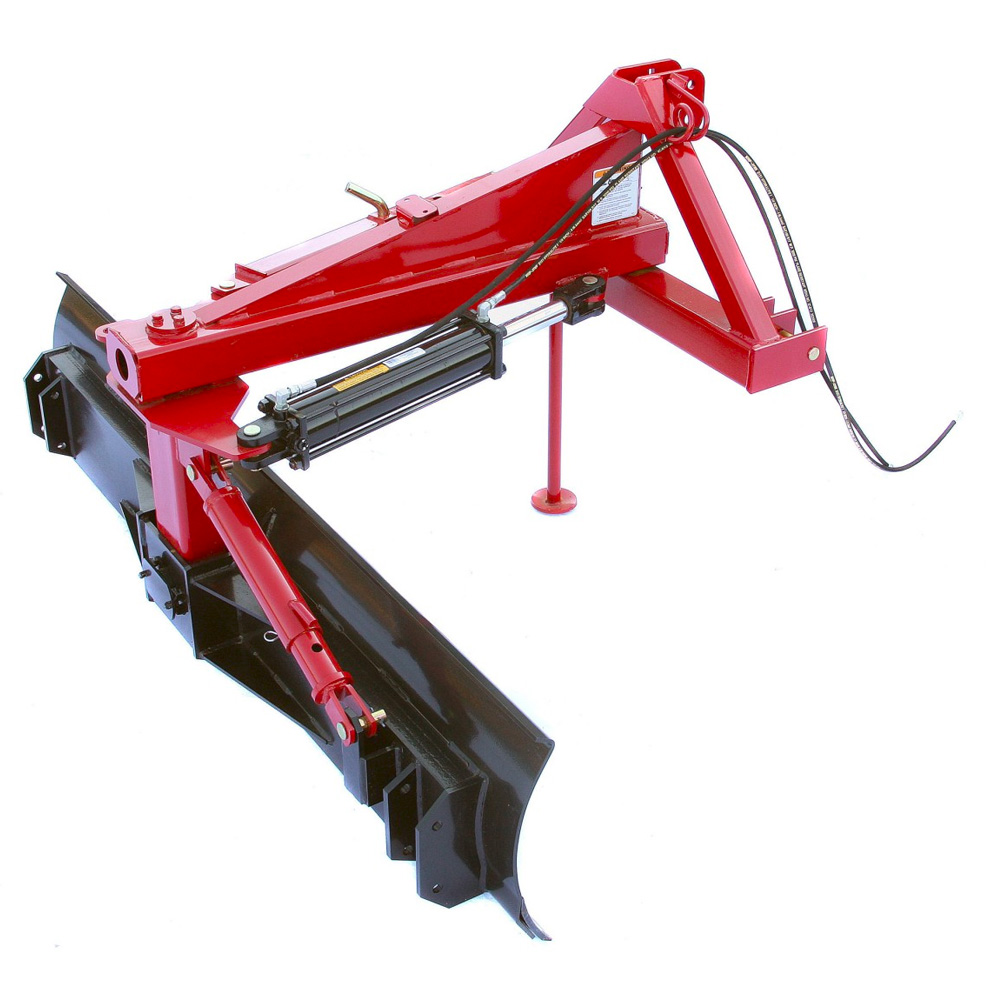

Bush Hog® 91 Series Rear Mounted Blade

Contact us for price

Stock status: Call Store for Availability

The rugged construction of the 91 Series rear blades makes them ideal for a wide variety of applications, ranging from general road maintenance to ditching, snow removal, and terracing jobs. They are rated for use on tractors up to 90 PTO horsepower, and come in an 8-foot width. Both the 70 Series and 91 Series feature a number of tilt, angle and offset adjustments in both forward and reverse positions.

Call Us Now

Specs

Models
91 SERIES
MOLDBOARD WIDTH
7 and 8 ft.
MOLDBOARD HEIGHT AND THICKNESS
16 x 3/8 in.
MOLDBOARD CUTTING EDGE
1/2 x 6 in. Reversible
HITCH
3-Pt. Cat. l & II Quick Hitch
APPROXIMATE WEIGHT
807 lbs. (7 ft.), 827 lbs. (8 ft.)
MAX. TRACTOR HP (PTO) 2-WHEEL DRIVE
90 HP
MAX. TRACTOR HP (PTO) FRONT WHEEL ASSIST
70 HP
KING PIN DIAMETER
3 in.
TILT ADJUSTMENT
15º up or down (manual or hyd.)
OFFSET ADJUSTMENT
30 in. left or right (manual or hyd.)
ANGLE ADJUSTMENT
45º left or right in forward position, 20º left or right in rev. position (manual or hyd.)
SKID SHOES
Optional
END PLATES
N/A
PARKING STAND
Standard
HYDRAULICS
Optional
