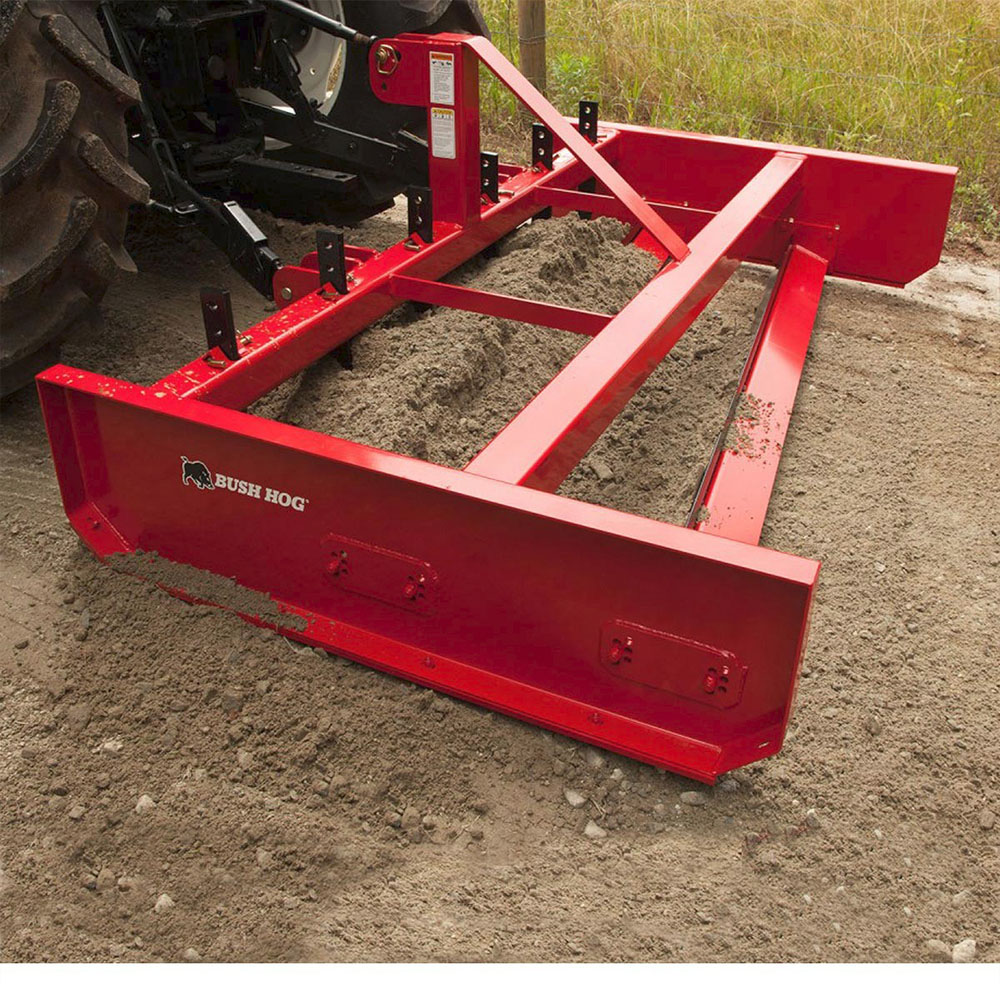

Bush Hog® HDRG Series Road Grader

Contact us for price

Stock status: Call Store for Availability

The new Bush Hog® Heavy Duty Road Grader is available in 7-feet and 8-feet operating widths. The HDRG’s heavy duty construction boasts a weight of up to 828-lbs., enabling it to tackle any grading job. The HDRG’s design features all-welded construction, a max rating up to 90 HP, and two offset and angled scraper blades that are vertically adjustable. The vertical blade adjustment system provides the user the ability to adjust the cutting depth to compensate for blade wear and tear. Heat treated plow point scarifier shanks enable the HDRG to rip through most any earthen surface when grading driveways, fire lanes, and maintaining/building dirt or gravel roads.

Call Us Now

Specs

Models
HDRG84
HDRG96
Hitch
3-Pt. Cat I & II QH
3-Pt. Cat I & II QH
Recommended HP
90 (2WD), 70 (4WD)
90 (2WD), 70 (4WD)
Working Width
84-inches
96-inches
Side Panel Thickness
3/16-inch
3/16-inch
Front Main Beam
4-inches x 4-inches x 3/8-inch
Rear Beam Construction
4-inches x 4-inches x 1/4-inch
Skid Shoe Reconstruction
1/2-inch x 2 1/2-inches
Scarifier Shanks
Four Position Shanks with Hardened Tips
Number of Scarifier Shanks
6
8
Cutting Edges
1/2-inch x 6-inches Bolt on Replaceable & Reversible Heat Treated Blades
