Specs

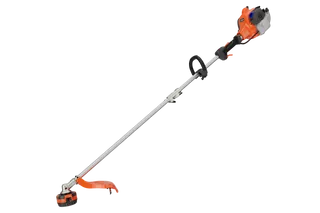

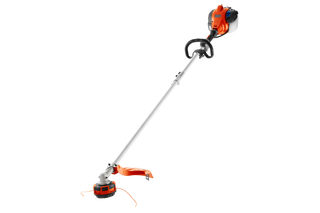

28cc detachable shaft trimmerArt no: 970 51 45‑01 | ||
---|---|---|
Cutting System | 28cc detachable shaft trimmer Art no: 970 51 45‑01 | 28cc detachable shaft, single pack Art no: 970 54 50‑01 |
Cutting width | 20 in | 20 in |
Engine | ||
Cylinder displacement | 1.7 cu.inch | 1.7 cu.inch |
Cylinder displacement | 28 cm³ | 28 cm³ |
Power output | 1 hp | 1 hp |
Maximum power speed | 8,000 rpm | 8,000 rpm |
Fuel tank volume | 17.82 fl oz (US) | 17.82 fl oz (US) |
Fuel consumption | 568 g/kWh | 543 g/kWh |
Idling speed | 3,000 rpm | 3,000 rpm |
Spark plug | Champion QCJ-8Y | Champion QCJ-8Y |
Electrode gap | 0.02 in | 0.02 in |
Torque, max. at rpm | 7,000 rpm | 7,000 rpm |
Torque, max. | 0.95 Nm | 0.95 Nm |
Clutch engagement speed (±120) | 4,200 rpm | 4,200 rpm |
Maximum rpm output shaft | 5,478 rpm | 5,478 rpm |
Dimensions | ||
Weight (excl. cutting equipment) | 12.85 lbs | 12.85 lbs |
Product size length | 72 in | 72 in |
Product size width | 9.5 in | 9.5 in |
Tube length | 59.291 in | 59.291 in |
Product size height | 10 in | 10 in |
Tube diameter | 0.945 in | 0.945 in |
Equipment | ||
Grass blade | Not included | |
Harness | Not included | |
Saw blade | Not included | |
Transmission | ||
Gear ratio | 0.522 | 0.522 |
Drive gear angle | 60 ° | 60 ° |
Emission | ||
Exhaust emissions (CO average) | 70.32 g/kWh | 70.32 g/kWh |
Exhaust emissions (CO average) | 128.59 g/kWh | 128.59 g/kWh |
Exhaust emissions (CO average) | 0 g/kWh | 0 g/kWh |
Vibration | ||
Equivalent vibration level (ahv, eq) front handle | 5.97 m/s² | 5.97 m/s² |
Equivalent vibration level (ahv, eq) rear handle | 6.12 m/s² | 6.12 m/s² |
Certifications | ||
WEEE Classified | No | No |
Sound and Noise | ||
Sound pressure level at operators ear | 96.1 dB(A) | 96.1 dB(A) |
Sound power level, guaranteed (LWA) | 116 dB(A) | 116 dB(A) |
Lubricant | ||
Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 | Husqvarna 2 stroke or equiv. at 50:1 |
