Specs

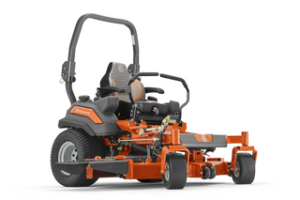

MZ54 ZERO TURNSKU: 967 95 37‑03 | |
|---|---|
| Capacity | MZ54 ZERO TURN SKU: 967 95 37‑03 |
| Speed forward max | 8.5 mph |
| Cutting deck | |
| Cutting width | 54 in |
| Cutting deck type | ClearCut™ - Fabricated |
| Cutting methods | Collect/Mulch/Side discharge |
| Cutting deck material | Steel |
| Deck thickness | 10 gauge |
| Cutting height steps | 13 |
| Blade engagement | Electric clutch |
| Blades | 3 pcs |
| Blade-tip speed | 18,500 fpm |
| Nose roller | Yes |
| Deck lifting system | Manual, foot assisted |
| Powder-coated cutting deck | Yes |
| Spindle/mandrel type | Cast iron |
| Greasable mandrels | Yes |
| Deck Wash Port | Yes |
| Cutting height, min (approximate) | 1.5 in |
| Cutting height, max (approximate) | 4.5 in |
| Dimensions | |
| Base machine, length | 81 in |
| Base machine, height | 46 in |
| Base machine, width (chute down) | 74 in |
| Base machine, width (chute up) | 63.75 in |
| Weight | 810 lbs |
| Tire size, front Diameter | 13 in |
| Drive system | |
| Transmission type | Hydrostatic |
| Transmission manufacturer | Hydro-Gear |
| Pump displacement | 10 cm³ |
| Fan-cooled pumps | Yes |
| Engine | |
| Motor/engine manufacturer | Kawasaki |
| Engine name | FR Series |
| Power output | 24 hp |
| Cylinder displacement | 44.3 cu.inch |
| Cylinders | 2 |
| Engine cooling | Air |
| Air filter type | Auto-type Paper |
| Power/fuel type | Gasoline |
| Engine lubrication type | Full pressure |
| Oil filter | Yes |
| Fuel tank volume (with reserve) | 5 gal (US) |
| Fuel tank location | Side (Single) |
| Equipment | |
| Seat material | Vinyl |
| Seat spring | Yes |
| Seat back height | High |
| Hour meter type | Digital with pre-programmed service intervals |
| Cup holder | Yes |
| Hinged armrests | Standard |
| ROPS | Yes |
| Seat type | 18" high back |
