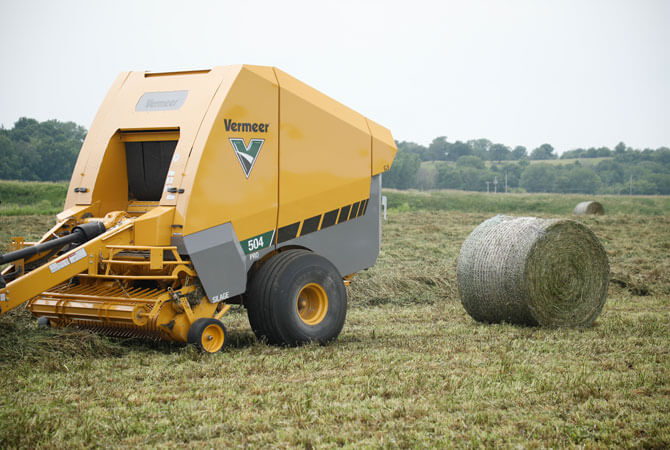

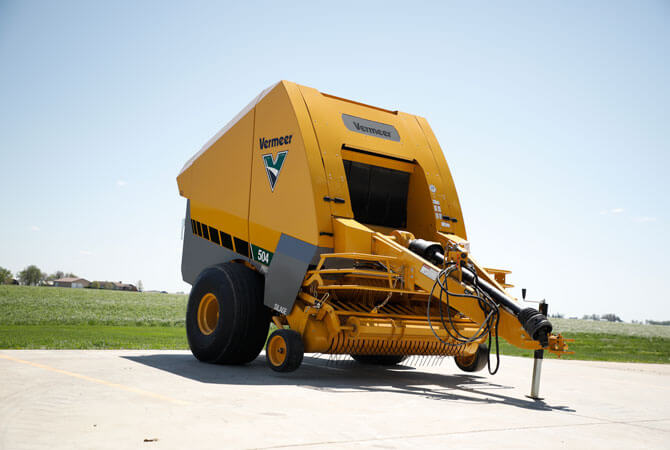

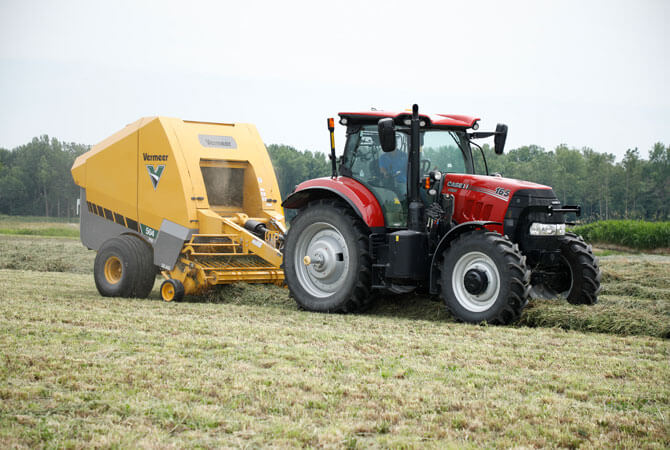

Vermeer 504 Pro G3 Baler

Vermeer 504 Pro G3 Baler

Contact us for price

Stock status: Call Store for Availability

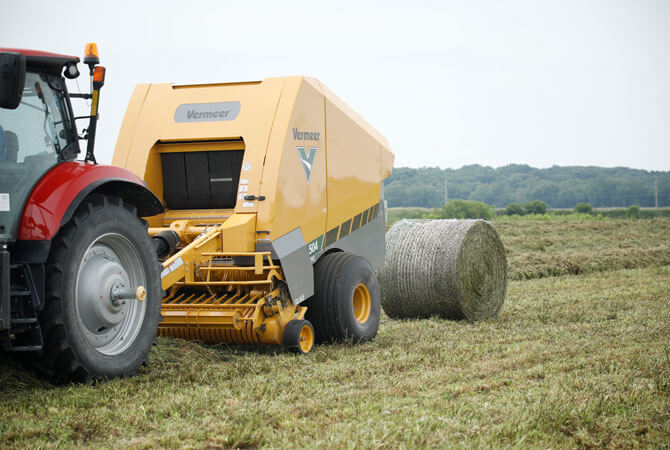

Oncoming rain clouds can ruin a hay producer’s day. That’s one reason why silage is quickly becoming a preferable option for producers everywhere who are tired of waiting on good weather and want high-quality forage for their cattle. According to Michigan State University Extension, silage harvested within five days of the optimal time has a feed quality advantage of $26.46 per ton over dry hay*. For some producers, that’s reason enough to make the switch.

The Vermeer Generation 3 Pro balers were specially designed and built from the ground up in Pella, Iowa, to handle the rigors of baling wet, heavy crops — combining strength and smart features while still giving operators the versatility of having a baler that can bale dry hay.

*https://www.makinhay.com/will-baleage-pay-consider-feed-needs-economics/

Call Us Now

Specs

  • Bale Size

    • Bale Diameter 36 in - 60 in (91.4 cm - 152.4 cm)
    • Bale Width 48 in 121.9 cm
    • Maximum bale weight 2400 lbs 1088.6 kg

  • Dimensions and Weights

    • Length standard 205 in 520.7 cm
    • Height 120 in 304.8 cm
    • Width with standard tires 96 in 243.8 cm
    • Width with optional tires 112 in 284.5 cm
    • Tires Standard: 14L-16.1; Optional: 21.5L-16.1 flotation
    • Weight fully optioned 9825 lbs 4456.5 kg

  • Bale Forming Chamber

    • Drive Roller Size 7.1 in (18 cm) rubber and (1) 6.6 in (16.8 cm) steel
    • Drum roller size 9.5 in 24.1 cm
    • Idler roller size 6.6 in (16.8 cm), 4.5 in (11.4 cm)
    • Start Roller Size 8 in 20.3 cm
    • Belt Type Endless belts
    • Number of Belts 4
    • Width of Belt 11.2 in 28.4 cm
    • Length of belt (long) 433.1 in 1100.1 cm
    • Type of Lace No laces

  • Drive System

    • Driveline 540 rpm, standard lube, cut-out clutch
    • Torque protection pickup Radial pin clutch
    • Roller chains Single 60, 80, 100 and Double 80
    • Bearing and Sprocket Configuration Round and Hex drive shafts, greaseable roller bearings

  • Tractor Requirements

    • PTO horsepower minimum 80 hp 59.7 kw
    • PTO horsepower recommended 110 hp 82 kw

  • Pickup

    • Pickup type Camless wide
    • Width tooth to tooth 73 in 185.4 cm
    • Width on outside flair 78 in 198.1 cm
    • Tooth Bars 5
    • Number of Teeth (75) double rubber-mounted
    • Teeth spacing 2.5 in (6.4 cm)
    • Stripper bands Poly
    • Flotation Gauge wheels 7.10-16 HD semi-pneumatic with spring assist
    • Pickup Lift Hydraulic
    • 3-year pickup warranty Standard

  • Control system

    • Control system type Atlas Pro™ control system
    • Display 7 in (17.8 cm) color touch screen
    • Field Statistics 50 fields with names
    • Field statistics download USB
    • Bale shape indicators Standard
    • Bales per hour Standard

  • Density

    • Bale density adjustments Standard through control system monitor
    • Density readings Digital gauge

  • Bale tie system

    • Netwrap system Standard
    • Net gauge via control system Standard
    • Net tension control via control system
    • Extra roll storage Standard

  • Features

    • Bale ramp Spring-loaded
    • Grease bank Standard
    • Automatic chain lube system Optional
    • Right-hand door Standard
    • LED maintenance lights Optional
    • Fire extinguisher, safety chain Optional
