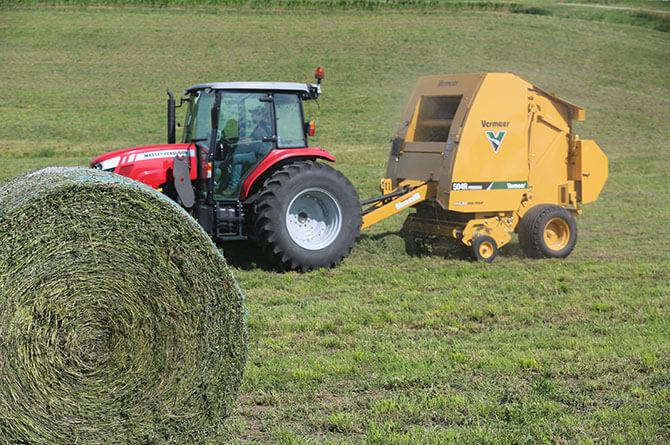

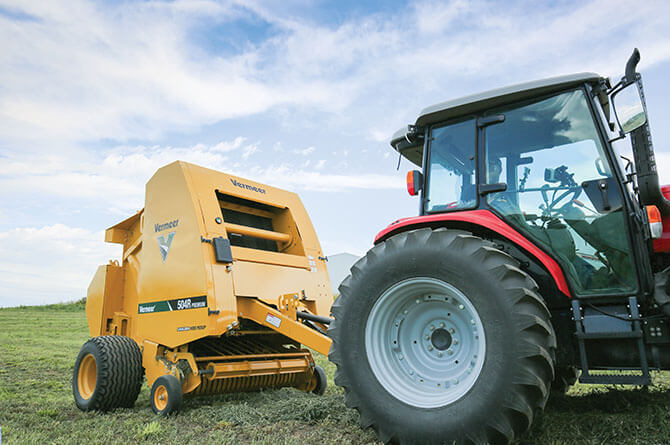

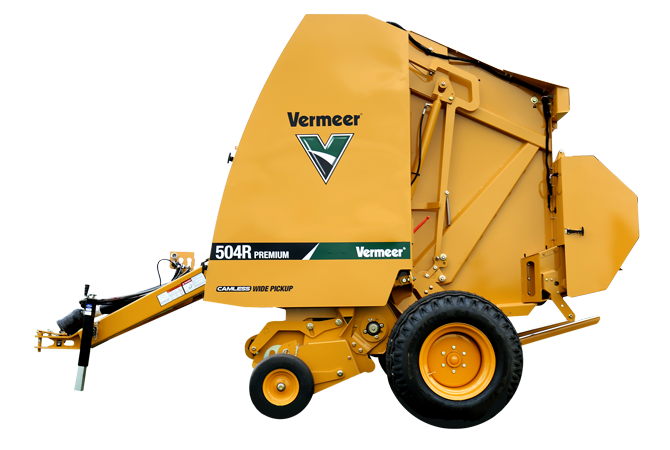

Vermeer 504R Premium Baler

Vermeer 504R Premium Baler

Contact us for price

Stock status: Call Store for Availability

The Vermeer 504R Premium baler is fully loaded and comes standard with a silage kit specially designed for high output of high-moisture crops. This package offers more capacity in heavy crops and produces good looking bales in tough conditions. Silage or not, this is your first-class baler.

Call Us Now

Specs

  • Bale Size

    • Bale Diameter 36 in - 60 in (91.4 cm - 152.4 cm)
    • Bale Width 47 in 119.4 cm
    • Maximum bale weight 2000 lbs 907.2 kg

  • Dimensions and Weights

    • Length standard 156 in 396.2 cm
    • Length with net 173 in 439.4 cm
    • Length with ramp 169 in 429.3 cm
    • Height 111 in 281.9 cm
    • Width with standard tires 100 in 254 cm
    • Tires Standard - 31 x 13.5-5; Optional - 480-45 R17 flotation tire
    • Weight fully optioned 5460 lbs 2476.6 kg

  • Bale Forming Chamber

    • Drive Roller Size 4.78 in (12.1 cm)
    • Idler roller size 3.5 in (8.9 cm)
    • Start Roller Size 4.5 in 11.4 cm
    • Belt Type Premium mini rough top or endless
    • Number of Belts 6
    • Width of Belt 6.8 in 17.3 cm
    • Length of belt (long) 465.5 in 1182.4 cm
    • Length of belt (short) 455.5 in 1157 cm
    • Type of Lace Alligator rivet or no laces (endless belts)
    • Silage kit Standard

  • Drive System

    • Driveline 540 rpm, extended lube, friction clutch
    • Torque protection pickup Radial pin clutch
    • Roller chains Single 60 and 80
    • Bearing and Sprocket Configuration Round drive shafts and bearings

  • Tractor Requirements

    • PTO horsepower minimum 55 hp 41 kw
    • PTO horsepower recommended 65 hp 48.5 kw

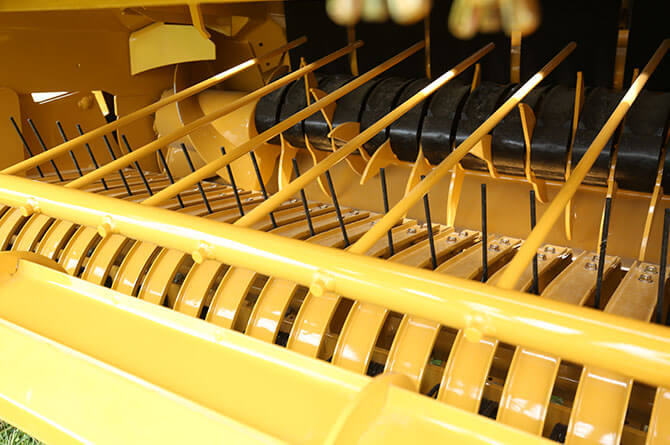

  • Pickup

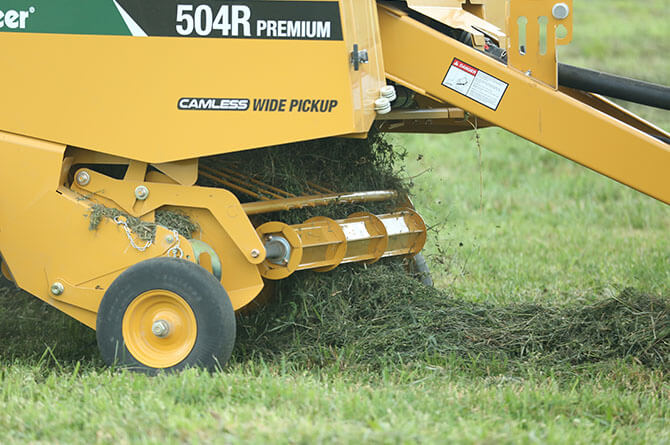

    • Pickup type Camless wide
    • Width tooth to tooth 60 in 152.4 cm
    • Tooth Bars 5
    • Number of Teeth (60) double steel coil
    • Teeth spacing 2.83 in (7.2 cm)
    • Stripper bands Steel
    • Flotation Gauge wheels 4.8-16 HD semi-pneumatic with spring assist
    • Pickup Lift Hydraulic
    • 3-year pickup warranty Standard

  • Control system

    • Control system type Atlas Pro™ control system
    • Display 7 in (17.8 cm) color touch screen
    • Field Statistics 50 fields with names
    • Field statistics download USB
    • Bale shape indicators Standard
    • Moisture Standard - up to 27%
    • Bales per hour Standard

  • Density

    • Bale density adjustments Standard manual through hydraulic relief valve
    • Density readings Physical gauge

  • Bale tie system

    • Twine system Optional
    • Netwrap system Standard
    • Net tension control via mechanical adjustment
    • Extra roll storage Standard

  • Features

    • Bale ramp Spring-loaded
    • Auto Lube greasing system Optional
    • Grease bank Standard
    • Right-hand door Standard
    • LED maintenance lights Optional
    • Fire extinguisher, safety chain Optional
