Vermeer 605N Baler

Vermeer 605N Baler

Contact us for price

Stock status: Call Store for Availability

With a sleek design, these balers may look different, but what hasn’t changed is the high performance and reliability they have to offer. Boasting durable, heavy-duty components and the ability to perform at a high capacity, the 605N Vermeer baler works hard to help you run smoothly and efficiently.

Call Us Now

Specs

  • Bale Size

    • Bale Diameter 36 in - 72 in (91.4 cm - 182.9 cm)
    • Bale Width 61 in 154.9 cm
    • Maximum bale weight 2400 lbs 1088.6 kg

  • Dimensions and Weights

    • Length standard 166 in 421.6 cm
    • Length with net 195 in 495.3 cm
    • Length with ramp 195 in 495.3 cm
    • Height 117 in 297.2 cm
    • Width with standard tires 114 in 289.6 cm
    • Width with optional tires 129 in 327.7 cm
    • Tires Standard - 14L-16.1; Optional - 21.5L-16.1 flotation tire
    • Weight fully optioned 8600 lbs 3900.9 kg

  • Bale Forming Chamber

    • Drive Roller Size 5.5 in (14 cm)
    • Drum roller size 12 in 30.5 cm
    • Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm), 5.5 in (14 cm)
    • Start Roller Size 4.5 in 11.4 cm
    • Belt Type Premium mini rough top
    • Number of Belts 8
    • Width of Belt 6.8 in 17.3 cm
    • Length of belt (long) 540 in 1371.6 cm
    • Length of belt (short) 533 in 1353.8 cm
    • Type of Lace Alligator rivet
    • Silage kit Optional

  • Drive System

    • Driveline 540 rpm, standard lube, friction clutch; or 1000 rpm, cut-out clutch
    • Torque protection pickup Radial pin clutch or friction with slip-sensing

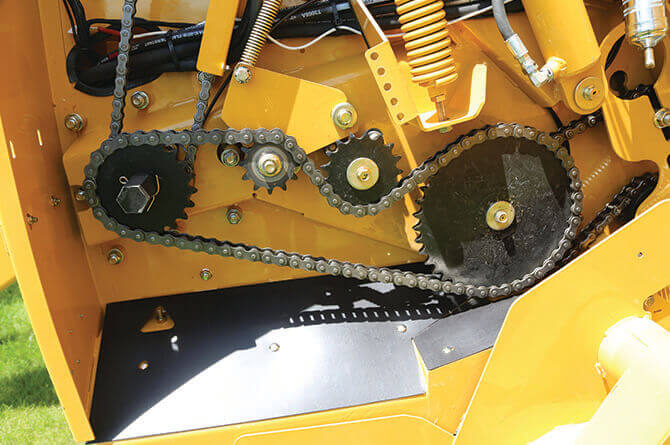

    • Roller chains Single 50, 60 and 80
    • Bearing and Sprocket Configuration Hex shaft and bearings

  • Tractor Requirements

    • PTO horsepower minimum 80 hp 59.7 kw
    • PTO horsepower recommended 100 hp 74.6 kw

  • Pickup

    • Pickup type Cammed wide
    • Width tooth to tooth 77 in 195.6 cm
    • Width on outside flair 90 in 228.6 cm
    • Tooth Bars 10
    • Number of Teeth (65) double rubber-mounted
    • Teeth spacing 3-1/16 in (7.8 cm)
    • Stripper bands Steel
    • Flotation Gauge wheels 7.1 - 16 HD semi-pneumatic with spring assist
    • Pickup Lift Hydraulic

  • Control system

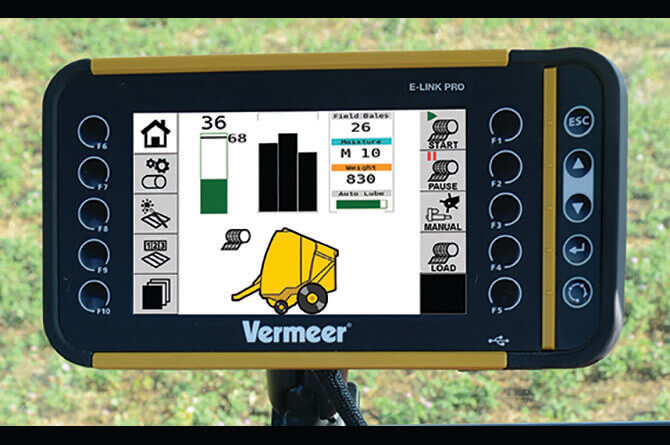

    • Control system type E-Link Pro
    • Display 7 in (17.8 cm) color touch screen
    • Field Statistics 20 customers with 10 fields each
    • Field statistics download USB
    • Bale shape indicators Standard
    • Moisture Standard - up to 27%
    • Bales per hour Standard

  • Density

    • Bale density adjustments Standard
    • Density readings Physical gauge
    • Cylinder size 3 in (7.6 cm)

  • Bale tie system

    • Twine system Optional
    • Netwrap system Optional
    • Net tension control via mechanical adjustment
    • Extra roll storage Standard

  • Features

    • Bale ramp Optional hydraulic
    • Auto Lube greasing system Optional
    • Grease bank Standard
    • Automatic chain lube system Optional
    • Right-hand door Standard
    • LED maintenance lights Optional
    • Fire extinguisher, safety chain Optional
