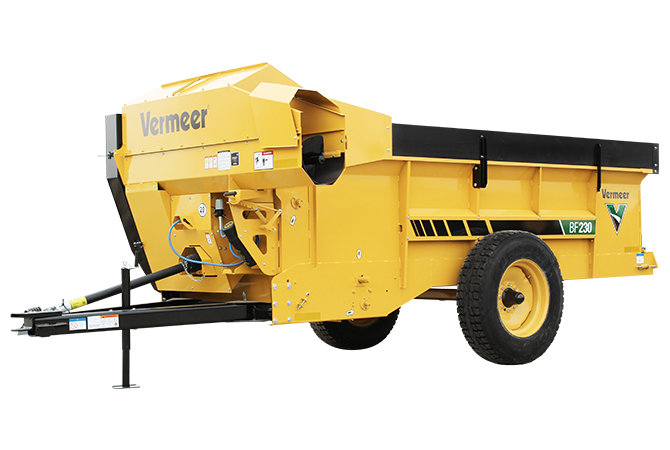

Vermeer BF230 Feed Wagon

Contact us for price

Stock status: Call Store for Availability

The BF230 feed wagon from Vermeer features a low loading height at just 70-in (180-cm), making it ideal for operations of multiple sizes. These machines were created to allow operators to be able to feed a complete ration without having a vertical mixer.

Call Us Now

Specs

  • Dimensions and Weights

    • Machine weight 3104 lbs 1408 kg
    • Transport Width 98 in 248.9 cm
    • Working Width 108 in 274.3 cm
    • Total height 84 in 213.4 cm
    • Loading height 70 in 177.8 cm
    • Tires 295/75R-22.5
  • Box

    • Capacity 230 cu ft 6.5 cu m
    • Inside box length 162 in 411.5 cm
    • Inside box width - below flare 54 in 137.2 cm
    • Inside box width - above flare 60 in 152.4 cm
    • Floor material Steel
  • Discharge System

    • Discharge style Conveyor or auger
    • Discharge Direction Left
    • Conveyor Length 82 in 208.3 cm
    • Auger Length 80.5 in 204.5 cm
  • Tractor Requirements

    • Recommended PTO horsepower 60 hp 44.7 kw
    • Hydraulic Type Optional, 1 double-acting
    • Hydraulic pressure Optional, 1800 psi (124 bar)
    • Hydraulic flow Optional, 10 gpm (38 L/min)
  • Drive System

    • Mechanical drive Standard
    • PTO speed 540 rpm
    • Hydraulic drive Optional hydraulic orbit motor
  • Scale system

    • Scale display Digi-Star EZ2500V
    • Number of weigh bars 3
    • Jack stand weigh bar Optional
