Specs
Dimensions and Weights
- Length 15.8 ft 4.8 m
- Height 8.5 ft 2.6 m
- Transport Width 8.2 ft 2.5 m
- Working Width 11.2 ft 3.4 m
- Weight 5240 lbs 2376.8 kg
- Drawbar Weight 1480 lbs 671.3 kg
- Axle adjustment 12 in (30.5 cm) each axle
- Tires Standard: 14L x 16.1FL; Optional: 16.5L -16.1SL 6 SofTrac II flotation tire
Tractor Requirements
- PTO horsepower minimum 85 hp (63 kW)
- PTO horsepower recommended 100 hp 74.6 kw
- PTO horsepower maximum 210 hp 156.6 kw
- PTO speed 1000 rpm
- Hydraulic Type 3 double-acting (2 double-acting with optional kit)
- Hydraulics Pressure 2000 psi 137.9 bar
- Hydraulic flow rate 8 gpm 30.3 L/min
Tub
- Bale rotation 3 roller chains with bolt-on cross slat
- Bale size capacity (2) bales, 6 ft x 5 ft (1.8 m x 1.5 m)
- Bale weight capacity 2500 lbs 1134 kg
Processing System

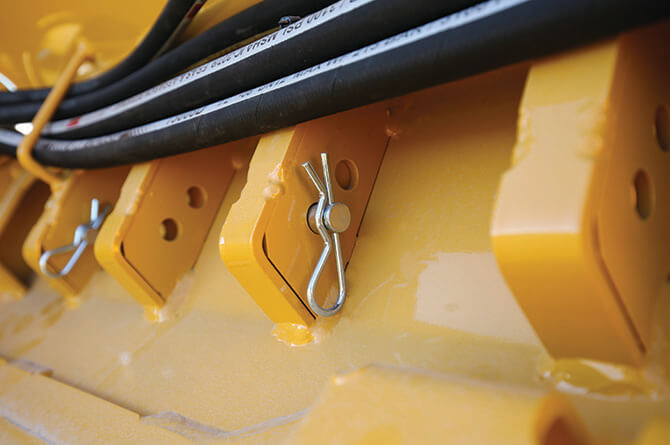

- Cut Control Bar Adjustment Hand lever with 5 settings, plus an additional high/low setting
- Cut Control Bar Quantity 7
- Flail description 7/16 in x 5-9/16 in (1.1 cm x 14.1 cm) in tempered spring
- Flail Drum Diameter 26.8 in 68.1 cm
- Flail Drum Length 78 in 198.1 cm
- Flail Drum Speed 1000 rpm
- Flail Drum Quantity 30
Discharge System
- Discharge Direction Right hand
- Horizontal spread distance Up to 50 ft (15.2 m)
Features
- Safety Chain Optional
- Torque Protection - Driveline Shear bolt
- Scale kit Optional
- Material containment kit Optional
- Powered sidewall Optional
- Square bale kit Optional
- Front discharge curtain Optional
