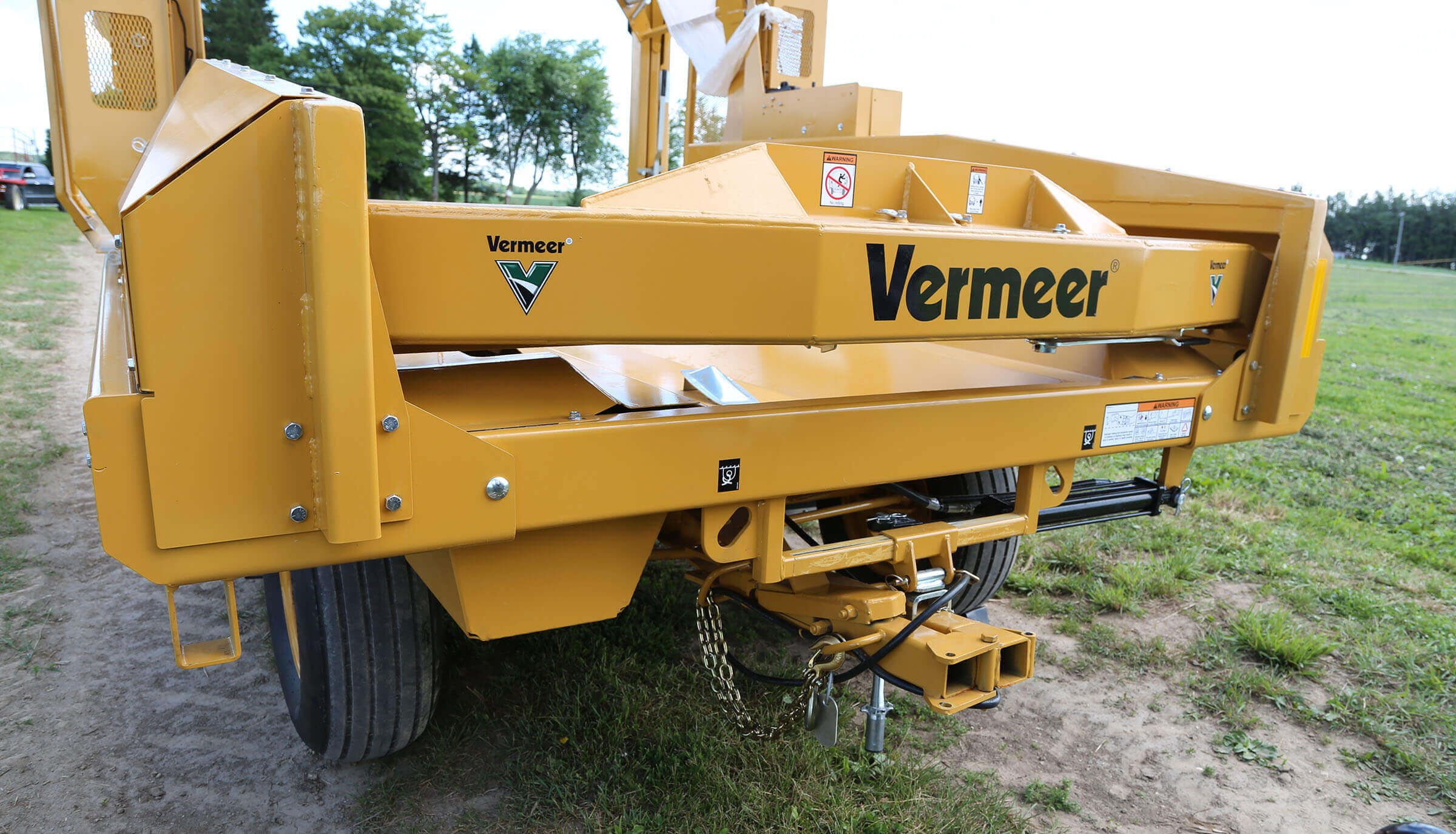

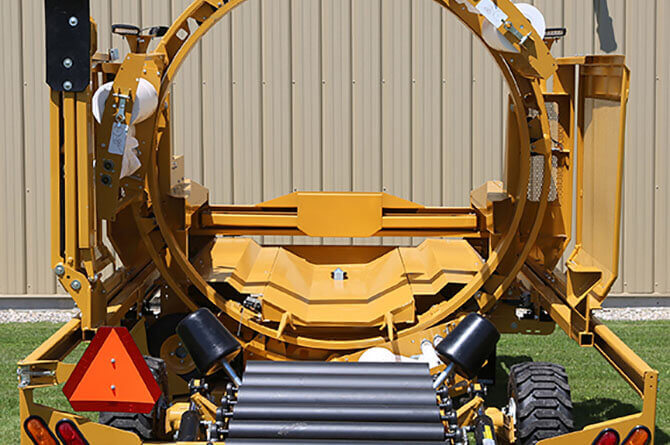

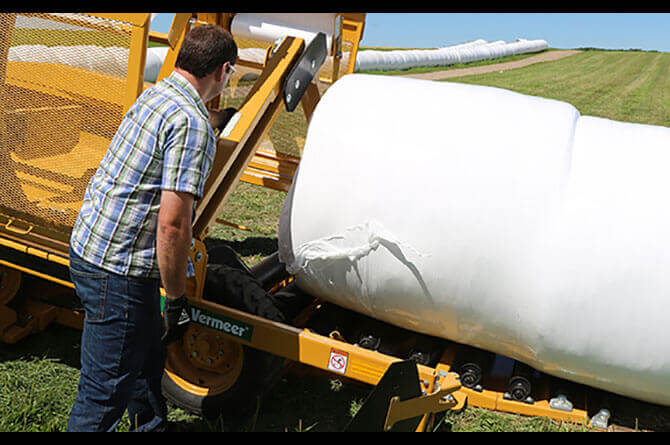

Vermeer BW5500 Bale Wrapper

Contact us for price

Stock status: Call Store for Availability

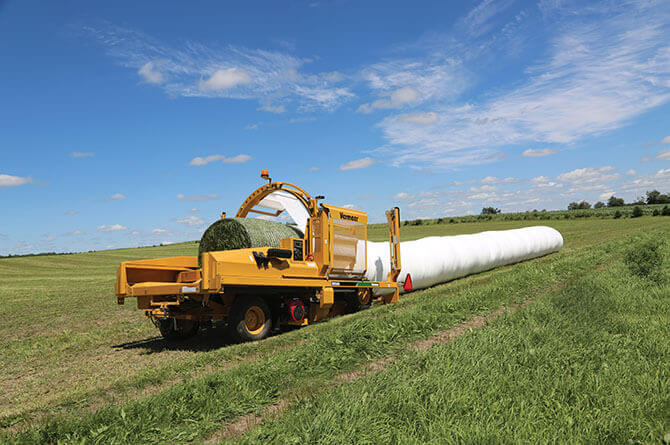

This BW5500 inline bale wrapper from Vermeer is designed to give large-volume hay operators and custom operators fast wrapping times and more operational control. The three plastic film pre-stretchers on the BW5500 help increase wrapping speed over machines with only two pre-stretchers. A digital controller allows the operator to apply a consistent number of wraps on bales with automation that consistently adjusts the wrap settings for environmental variations.

Call Us Now

Specs

  • Dimensions and Weights

    • Transport Length 18 ft 5.5 m
    • Transport Height 9 ft 2.7 m
    • Transport Width 8 ft 2.4 m
    • Machine weight 5000 lbs 2268 kg
    • Tires (2) 11L x 15-8, (2) 27 x 10.5 traction
  • Specifications

    • Engine 13 hp or 20 hp (9.7 kW or 14. 9 kW) Honda
    • Engine Start Electric
    • Hydraulics Self-contained

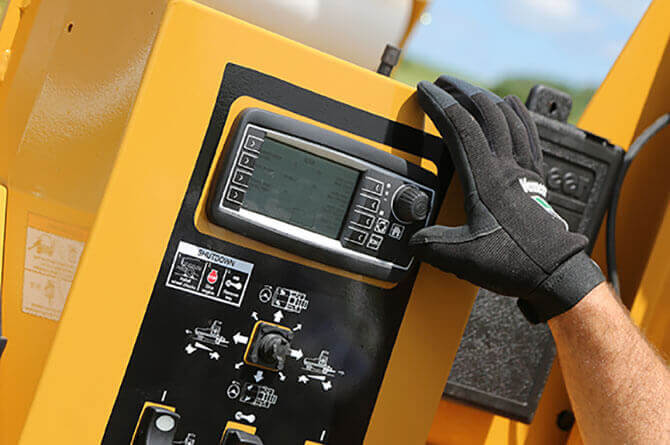

    • Control System Digital with LCD display
    • Hitch Drawbar
    • Steering Electric over hydraulic joystick
    • Film Stretcher (3) 30 in (76.2 cm) x 55%
    • Bale Alignment Fixed bale guides
    • Wrapping Capacity 120 bales/hr
    • Hoop Speed Digital controller adjusted
    • Bale size maximum (diameter x width) 6 ft x 5 ft (1.7 m x 1.5 m) round
  • Features

    • Remote Steer, Engine Start/Stop Optional
    • LED work lights Optional

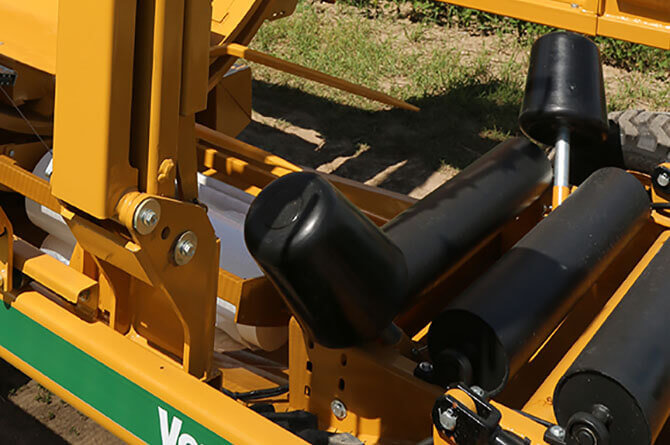

    • Discharge Guide Rollers Optional
    • Plastic Sensor Alert Optional
    • Spring-assisted final bale push off Optional
    • Laser guidance Optional
