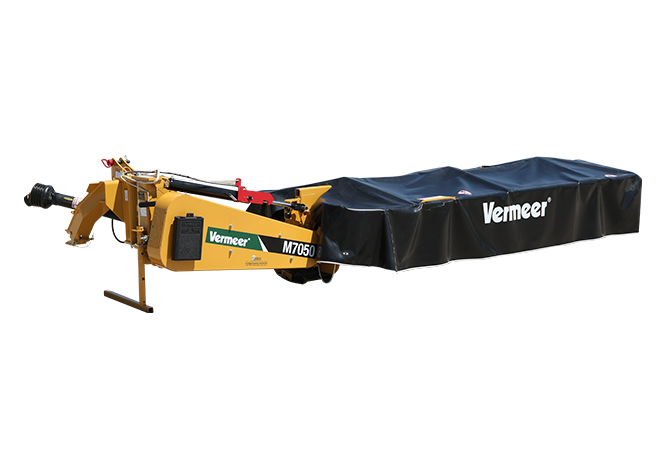

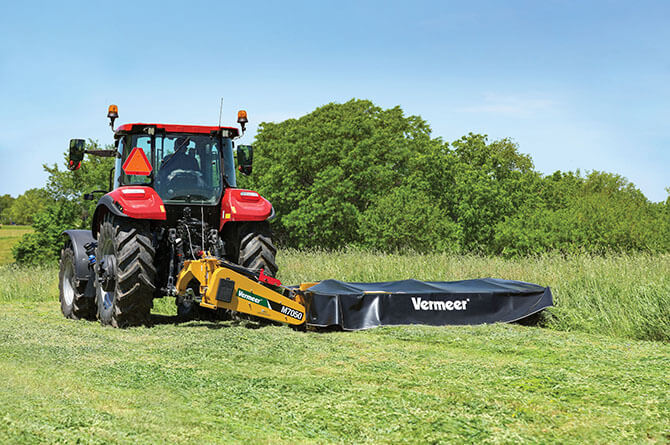

Specs

• Dimensions and Weights

  • Transport width - standard 7.8 ft 2.4 m
  • Transport Length 6.5 ft 2 m
  • Cutting Width 9.2 ft 2.8 m
  • Working Width 9.2 ft 2.8 m
  • Working Length 6.5 ft 2 m
  • Total Weight 1291 lbs 585.6 kg
  • Torque Protection Driveline: V-belt

• Tractor Requirements

  • Tongue/hitch 3-point quick hitch, category II or III N
  • Drive PTO 540 rpm
  • PTO horsepower recommended 70 hp 52.2 kw
  • Hydraulic Type 1 auxiliary remote, single-acting
  • Hydraulic Pressure 2000 psi 137.9 bar
  • Hydraulic flow rate 6 gpm 22.7 L/min

• Cutter bar

  • Cutter bar type Standard
  • Cut height 1.3 in - 3.9 in (3.2 cm - 9.9 cm)
  • Number of Discs 7
  • Disc Diameter 19.7 in 50 cm
  • Disc Speed 2850 rpm
  • Number of Blades 14
  • Angle Adjustment Top-link on 3-point
  • Quick Clip® blade retention system Standard
  • Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
  • 3-year limited cutter bar warranty Standard

• Features

  • Optional swath formation Optional crop divider; Optional crop divider and swath wheel combination
  • Skid Shoes Optional topping skid shoes; Optional wear skids
