Specs
Dimensions and Weights
- Transport Height 73 in 185.4 cm
- Transport Width - ends up 11.6 ft 3.5 m
- Transport Width - ends down 14.1 ft 4.3 m
- Transport Length 27.5 ft 8.4 m
- Cutting Width 12 ft 3.7 m
- Working Height 73 in 185.4 cm
- Working Width 14.1 ft 4.3 m
- Mower swung out offset 70 in 177.8 cm
- Cutter bar lift height clearance 17 in 43.2 cm
- Total Weight 6080 lbs 2757.8 kg
- Total weight - roller conditioner 6080 lbs 2757.8 kg
- Tongue Weight 1520 lbs 689.5 kg

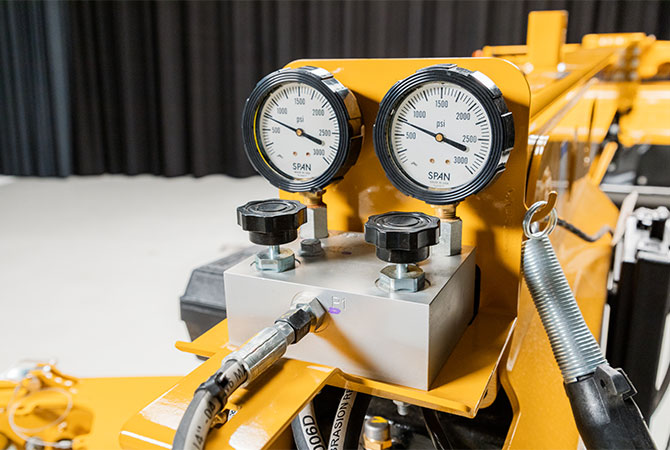

- Suspension Nitrogen-charged accumulator suspension system
- Torque Protection Friction over - running clutch — cutter bar; Banded V-belt — rollers
- Tires 31X13.5-15
Tractor Requirements

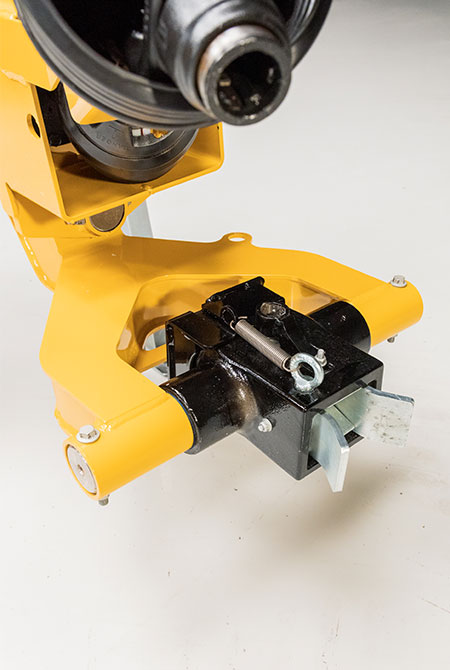

- Tongue/hitch Drawbar with swivel gearbox OR 2-point with swivel gearbox, category II or III N
- Drive PTO 1,000 rpm
- PTO horsepower recommended 90 hp 67.1 kw
- Hydraulic Type 2 double-acting
- Hydraulic Pressure 1900 psi 131 bar
- Hydraulic flow rate 6 gpm 22.7 L/min

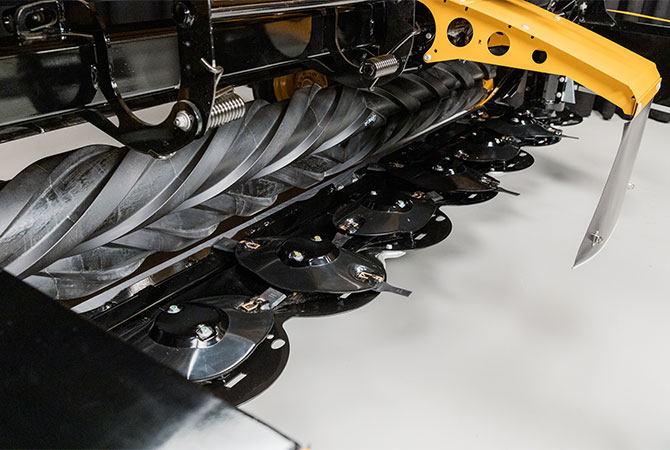

Cutter bar
- Cutter bar type Q3® cutter bar
- Cut height 1 in - 8 in (2.5 cm - 20 cm)
- Number of Discs 8
- Disc Diameter 23 in 58.4 cm
- Disc Speed 2700 rpm
- Number of Blades 16
- Angle Adjustment Hydraulic pitch control
- Quick Clip® blade retention system Standard
- Quick-Change™ shear ring Standard
- Curtain material 1,400 gm/m2 polyester woven material with flexible PVC covering
- 3-year limited cutter bar warranty Standard
Features
- Skid Shoes Optional wear skids
- Highway Lights Standard

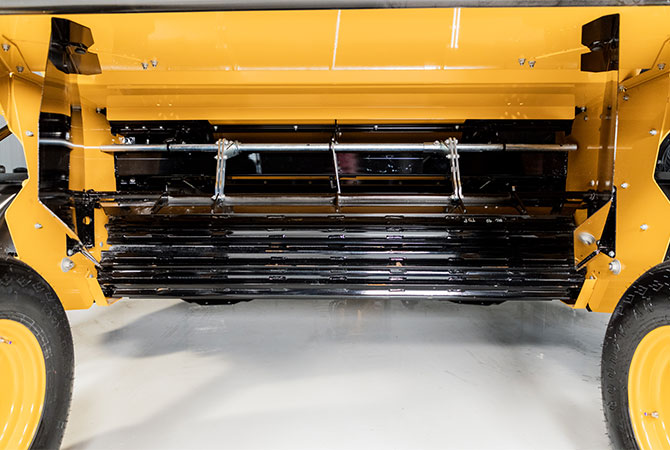

Roller Conditioner

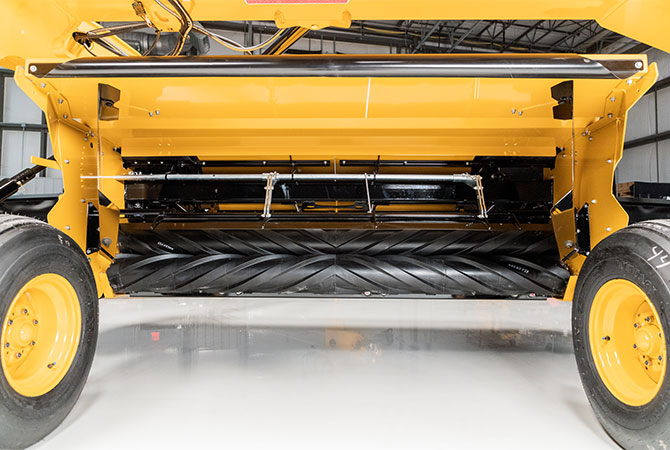

- Type Intermeshing steel rollers or rubber rollers
- Conditioner Drive 4-band banded V-belt
- Conditioner Width 118 in 299.7 cm
- Roller Diameter 9.3 in 23.6 cm
- Roller Speed 740 rpm
- Windrow width minimum 48 in 121.9 cm
- Windrow width maximum 112 in 284.5 cm
- Platform (for tall crops) Standard
- Topping high cut kit Standard
