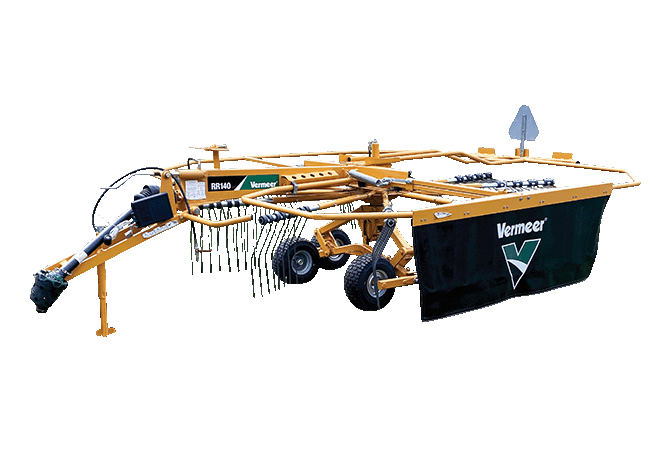

Vermeer RR140 Rotary Rake

Contact us for price

Stock status: Call Store for Availability

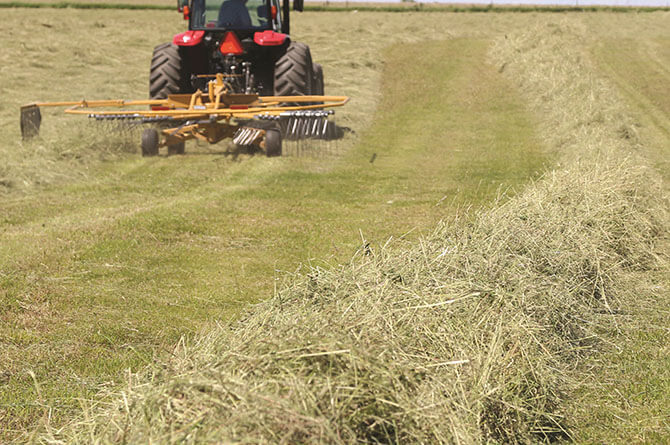

Rake faster and more efficiently, in wet or dry hay, with the all-new RR140 rotary rake from Vermeer. This versatile, side-delivery rotary rake is designed for operators focused on both speed and hay quality in a variety of crops, and who want a light, fluffy windrow with minimal crop roping. The RR140 has a maximum raking width of 13.75 ft (4.2 m) with a low 40-hp (29.8-kW) tractor requirement, making it ideal for small and mid-size operations.

Call Us Now

Specs

  • Dimensions and Weights

    • Raking width minimum 12.7 ft 3.9 m
    • Raking width maximum 15.1 ft 4.6 m
    • Windrow width minimum 28 in 71.1 cm
    • Windrow width maximum 55 in 139.7 cm

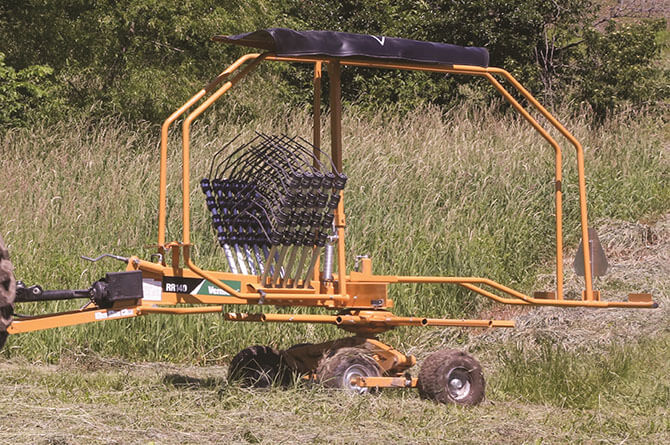

    • Transport Width 6.6 ft 2 m
    • Transport Length 16.4 ft 5 m
    • Transport Height 8.5 ft 2.6 m
    • Total Weight 1676 lbs 760.2 kg
    • Tongue Weight 221 lbs 100.2 kg
    • Transport tire size 18 x 8.5-8
    • Drive PTO, 540 rpm
  • Raking components

    • Rotor diameter 135 in 342.9 cm
    • Number of tine arms 11
    • Number of double tines per arm 4
  • Tractor Requirements

    • PTO horsepower minimum 30 hp 22.4 kw
    • Hydraulic Type 1 single-acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic flow rate 8 gpm 30.3 L/min
