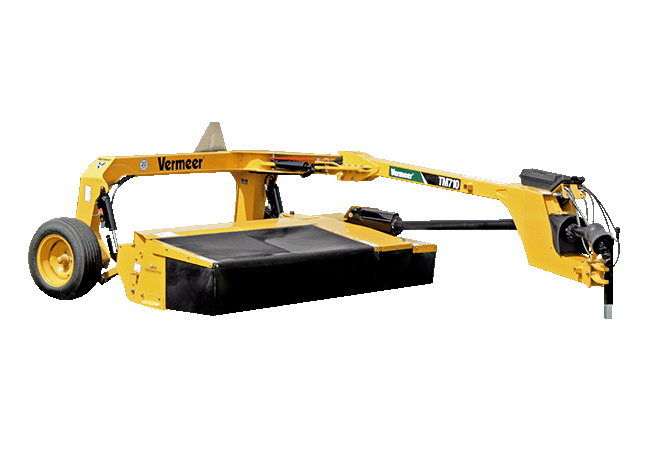

Vermeer TM710 Trailed Mower

Contact us for price

Stock status: Call Store for Availability

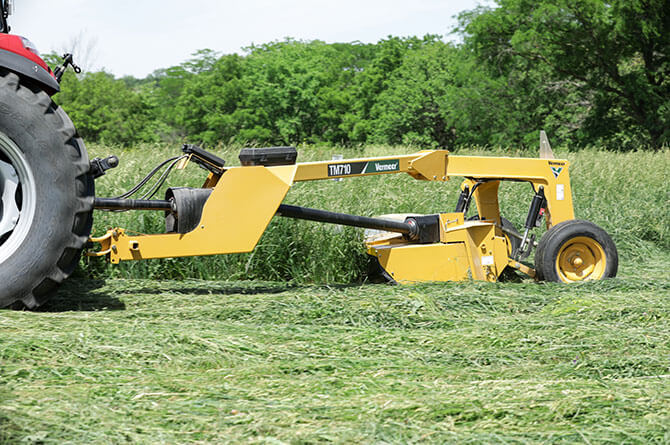

Even before you start mowing, you will experience the simplicity of TM710 trailed mowers. It starts at hookup. Connect the hitch, PTO and hydraulics, and you’re ready to go to the field. Narrow transport widths and toolless suspension adjustments help you mow and go. Horsepower requirements (55 hp [40.4 kW]) are an average of 20% lower than comparable 3-pt disc mowers). Plus, it delivers the consistent, clean cut you’ve come to expect from Vermeer trailed mowers.

Call Us Now

Specs

  • Dimensions and Weights

    • Transport Height 46 in 116.8 cm
    • Transport width - standard 9.4 ft 2.9 m
    • Transport Length 15.3 ft 4.7 m
    • Cutting Width 9.2 ft 2.8 m
    • Working Height 46 in 116.8 cm
    • Working Width 13.6 ft 4.1 m
    • Working Length 14.3 ft 4.4 m
    • Total Weight 2200 lbs 997.9 kg
    • Tongue Weight 630 lbs 285.8 kg
    • Suspension Rubber torsion
    • Torque Protection Driveline: friction disc clutch
    • Tires 27x9.5-15
  • Tractor Requirements

    • Tongue/hitch Drawbar
    • Drive PTO 540 rpm
    • PTO horsepower recommended 55 hp 41 kw
    • Hydraulic Type 2 double-acting (1 double-acting with optional kit)
    • Hydraulic Pressure 1250 psi 86.2 bar
    • Hydraulic flow rate 6 gpm 22.7 L/min
  • Cutter bar

    • Cutter bar type Standard
    • Cut height 1.3 in - 3 in (3.2 cm - 7.6 cm)
    • Number of Discs 7
    • Disc Diameter 19.7 in 50 cm
    • Disc Speed 2797 rpm
    • Number of Blades 14
    • Angle Adjustment Manual turnbuckle

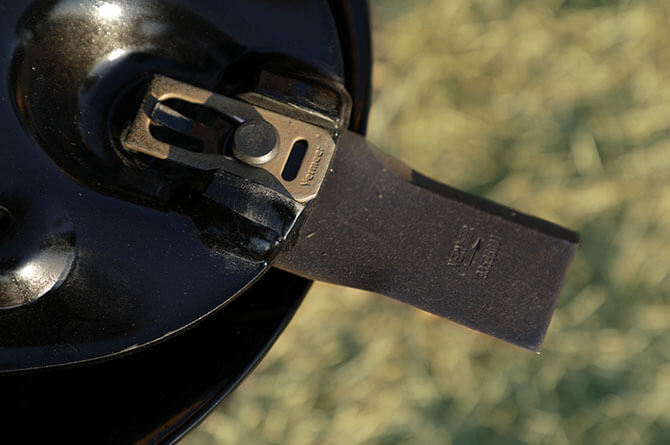

    • Quick Clip® blade retention system Standard
    • Curtain material 1 ply 1/8 in rubber
    • 3-year limited cutter bar warranty Standard
  • Features

    • Optional swath formation Optional swathboard
    • Skid Shoes Standard modular independent skid shoes; Optional topping wear skids
