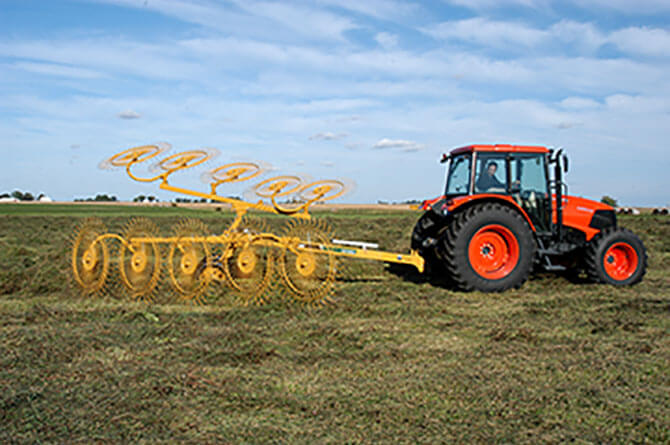

Vermeer VR1022 Carted Wheel Rake
Vermeer VR1022 Carted Wheel Rake
Vermeer VR1022 Carted Wheel Rake
Vermeer VR1022 Carted Wheel Rake
Vermeer VR1022 Carted Wheel Rake
Vermeer VR1022 Carted Wheel Rake
Vermeer VR1022 Carted Wheel Rake
Vermeer VR1022 Carted Wheel Rake

Vermeer VR1022 Carted Wheel Rake

Contact us for price

Stock status: Call Store for Availability

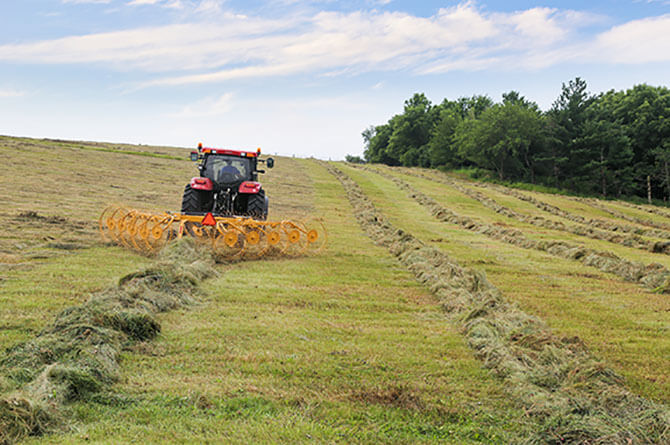

When you’re making hay, you need the reliability, strength and high performance capability of the VR1022 carted wheel rake. Featuring a number of Vermeer innovations, the VR1022 is easy to operate and built for high-volume raking. Take on each field with adjustable hitch heights and telescoping tool bars that allow you to change raking and windrow widths with ease. Patented rubber torsion toolbar suspension requires no tools.

Call Us Now

Specs

  • Dimensions and Weights

    • Raking width minimum 19 ft 5.8 m
    • Raking width maximum 22.6 ft 6.9 m
    • Windrow width minimum 19 in 48.3 cm
    • Windrow width maximum 82 in 208.3 cm
    • Transport Width 10 ft 3 m
    • Transport Length 20.2 ft 6.2 m
    • Transport Height 9.4 ft 2.9 m
    • Total Weight 1520 lbs 689.5 kg
    • Tongue Weight 300 lbs 136.1 kg
    • Transport tire size ST205/75D15
    • Flotation Rubber torsion on toolbar

  • Raking components

    • Number of Rake Wheels 10
    • Rake wheel diameter 55 in 139.7 cm
    • Teeth per wheel 40
    • Tooth diameter .3 in .8 cm
    • Rake wheel wind discs Optional
    • Single-side raking Standard left- or right-side capable

  • Tractor Requirements

    • PTO horsepower minimum 30 hp 22.4 kw
    • Hydraulic Type 1 double-acting
    • Hydraulic Pressure 1500 psi 103.4 bar
    • Hydraulic flow rate 5 gpm 18.9 L/min

  • Features

    • Safety Chain Optional

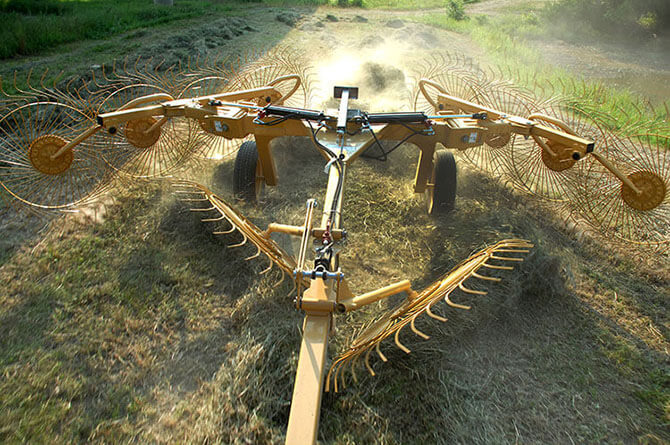

    • Center splitter Optional
