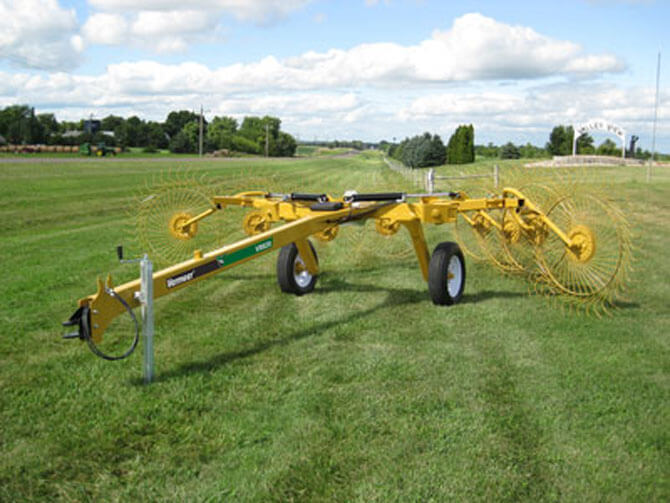

Vermeer VR820 Carted Wheel Rake

Vermeer VR820 Carted Wheel Rake

Contact us for price

Stock status: Call Store for Availability

Just like other Vermeer innovations, the VR820 carted wheel rake combines high performance and superior reliability with features that make it easy to operate. Rake field after field with ease, thanks to a rugged channel tongue with adjustable hitch heights and telescoping tool bars that allow you to change raking and windrow widths with ease. Patented rubber torsion toolbar suspension requires no tools. Single-side raking is easily achieved by simply turning a valve.

Call Us Now

Specs

  • Dimensions and Weights

    • Raking width minimum 16.6 ft 5.1 m
    • Raking width maximum 19 ft 5.8 m
    • Windrow width minimum 31 in 78.7 cm
    • Windrow width maximum 80 in 203.2 cm
    • Transport Width 10 ft 3 m
    • Transport Length 20 ft 6.1 m
    • Transport Height 9.4 ft 2.9 m
    • Total Weight 1370 lbs 621.4 kg
    • Tongue Weight 200 lbs 90.7 kg
    • Transport tire size ST205/75D15
    • Flotation Rubber torsion on toolbar

  • Raking components

    • Number of Rake Wheels 8
    • Rake wheel diameter 55 in 139.7 cm
    • Teeth per wheel 40
    • Tooth diameter .3 in .8 cm
    • Rake wheel wind discs Optional
    • Single-side raking Standard left- or right-side capable

  • Tractor Requirements

    • PTO horsepower minimum 30 hp 22.4 kw
    • Hydraulic Type 1 double-acting
    • Hydraulic Pressure 1500 psi 103.4 bar
    • Hydraulic flow rate 5 gpm 18.9 L/min

  • Features

    • Safety Chain Optional
    • Center splitter Optional
