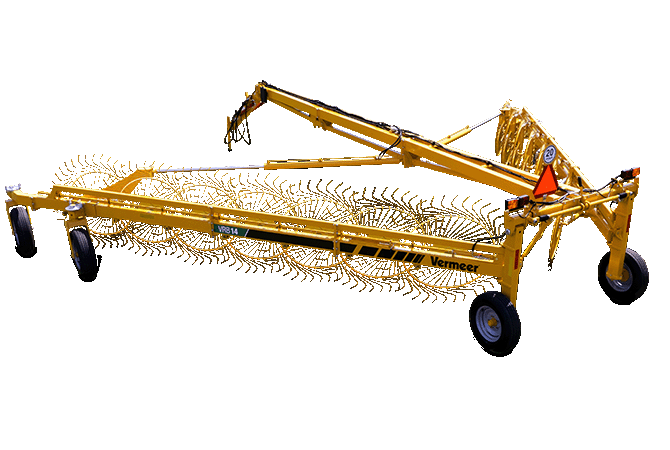

Vermeer VRB14 High-Capacity Bifold Wheel Rake

Vermeer VRB14 High-Capacity Bifold Wheel Rake

Contact us for price

Stock status: Call Store for Availability

The Vermeer VRB14 high-capacity bifold wheel rake is built for durability and versatility. With 14 wheels, a 28.5-foot (8.8-m) raking width and a bifold frame designed for optimal ground clearance, you can rake heavy crops with confidence. Toolless adjustments and 60-in (152-cm) rake wheels allow you to maintain your productivity in the field.

Call Us Now

Specs

  • Dimensions and Weights

    • Raking width maximum 28.5 ft 8.7 m
    • Windrow width minimum 36 in 91.4 cm
    • Windrow width maximum 72 in 182.9 cm
    • Transport Width 8.3 ft 2.5 m
    • Transport Length 32.7 ft 10 m
    • Transport Height 6.4 ft 2 m
    • Total Weight 5070 lbs 2299.7 kg
    • Tongue Weight 1742 lbs 790.2 kg
    • Transport tire size 205/75-R15
    • Flotation Steel spring on individual rake wheel

  • Raking components

    • Number of Rake Wheels 14
    • Rake wheel diameter 60 in 152.4 cm
    • Teeth per wheel 40
    • Tooth diameter .3 in .8 cm
    • Rake wheel wind discs Optional
    • Single-side raking Optional

  • Tractor Requirements

    • PTO horsepower minimum 40 hp 29.8 kw
    • Hydraulic Type 2 double-acting
    • Hydraulic Pressure 1800 psi 124.1 bar
    • Hydraulic flow rate 5 gpm 18.9 L/min

  • Features

    • Highway Lights Standard
    • Safety Chain Standard
    • Center splitter Optional
