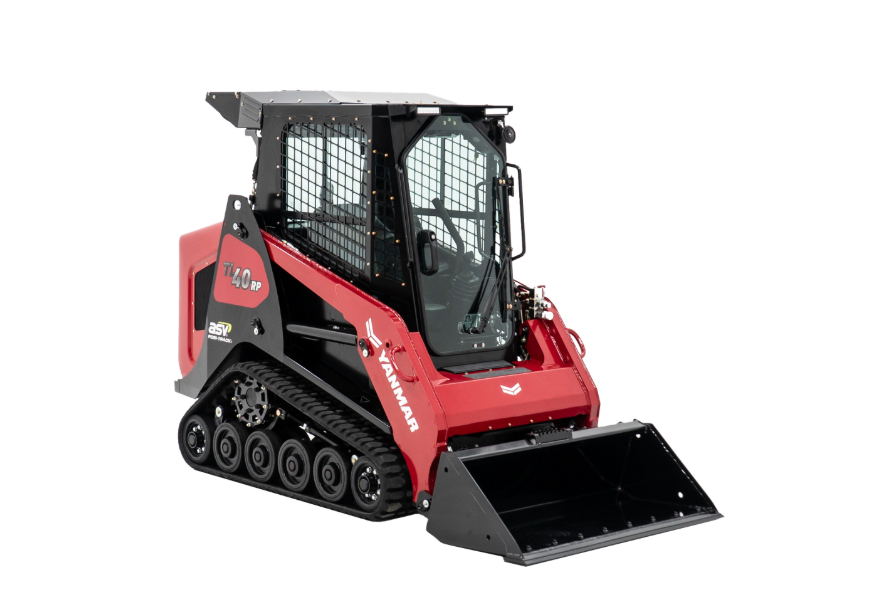

YANMAR Compact Track Loader TL40RP

YANMAR Compact Track Loader TL40RP

Contact us for price

Stock status: Call Store for Availability

Introducing the TL40RP, the compact track loader that steps up where it counts. Designed around a nimble 48″ footprint, it delivers increased power, capacity, and auxiliary performance, taking on a wider range of demanding applications without giving up the maneuverability and transportability contractors depend on. With ASV Posi-Track® undercarriage technology and an available all-weather cab, it’s built for any job, any season.

Call Us Now

Specs

Operating Specifications

This div for css purpose only
Loader Arms
Radial
Radial
This div for css purpose only
Operating Weight (Open ROPS)
4,030 lbs
1,828 kg
This div for css purpose only
Operating Weight (Enclosed Cab)
4,355 lbs
1,975 kg
This div for css purpose only
Ground Pressure at Operating Weight
3.3 psi
22.75 kPa
This div for css purpose only
Rated Operating Capacity (35% of Tipping Weight)
930 lbs
422 kg
This div for css purpose only
Operating Capacity (50% of Tipping Weight)
1,330 lbs
603 kg
This div for css purpose only
Tipping Weight
2,660 lbs
1,206 kg
This div for css purpose only
Travel Speed, Maximum
7.1 mph
11.4 kph
This div for css purpose only
Breakout Force
2,480 lbs
1,125 kg

Auxiliary Hydraulic System

Auxiliary Hyd. Flow, Standard
13.3 gpm
50.4 lpm
Auxiliary Hyd. Pressure, Standard
3,000 psi
20,684 kPa
Controls
Variable flow via joystick rocker switch, or continuous via console switch
Variable flow via joystick rocker switch, or continuous via console switch
Couplers
Push to connect quick couplers mounted on manifold block. Pressure relief valve on block.
Push to connect quick couplers mounted on manifold block. Pressure relief valve on block.
Cooling System
High efficiency oil cooler beside engine radiator, not stacked
High efficiency oil cooler beside engine radiator, not stacked
Quick-Attach Mounting Plate
ASV Mini-Track loader coupler with Manual Latching pins
ASV Mini-Track loader coupler with Manual Latching pins

Engine

This div for css purpose only
Type
Diesel, 3-cylinder, turbocharged
Diesel, 3-cylinder, turbocharged
This div for css purpose only
Model
YANMAR 3TNV86CT
YANMAR 3TNV86CT
This div for css purpose only
Gross Power Rating
38.2 hp
28.5 kW
This div for css purpose only
Displacement
95.7 cu in
1.6 L
This div for css purpose only
Torque, Peak
93.6 ft-lb
126.9 Nm
This div for css purpose only
Cooling System Type and Capacity
Engine-driven fan and coolant/antifreeze-filled radiator
Engine-driven fan and coolant/antifreeze-filled radiator
This div for css purpose only
Intake Air Cleaner
Dual stage
Dual stage
This div for css purpose only
Emission Controls
Meets all U.S. EPA Tier 4 final standards
Meets all U.S. EPA Tier 4 final standards
This div for css purpose only
Standard Features
Engine block heater
Engine block heater

Undercarriage

This div for css purpose only
Track Type
General purpose track with embedded co-polymer cords and all-purpose treads
General purpose track with embedded co-polymer cords and all-purpose treads
This div for css purpose only
Track Width
11 in
279 mm
This div for css purpose only
Length of Track on Ground
55 in
1,397 mm
This div for css purpose only
Ground Contact Area
1,210 in²
0.78 m²
This div for css purpose only
Drive System
Two hydrostatic direct drive sprockets controlled by single joystick
Two hydrostatic direct drive sprockets controlled by single joystick
This div for css purpose only
Undercarriage Suspension
Two independent torsion axles per undercarriage
Two independent torsion axles per undercarriage
This div for css purpose only
Roller Wheels
Twelve ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include sealed bearings
Twelve ultra-high molecular weight polyethylene and rubber wheels per track. Wheels include sealed bearings

Service Capacity

Fuel Tank
13 gal
49 L
DEF Capacity
N/A
N/A

Electrical System

This div for css purpose only
Nominal Charge
12 V
12 V
This div for css purpose only
Battery
590 CCA
590 CCA
This div for css purpose only
Charging System
80 amp alternator
80 amp alternator
This div for css purpose only
Outlets
1–12 V port inside operator station
1–12 V port inside operator station
This div for css purpose only
Wiring
Pre-wired for all factory-available accessories
Pre-wired for all factory-available accessories

Operator Station

This div for css purpose only
Cab
Open ROPS Base (B), Open ROPS Premium (P), Cold Weather Cab Premium (P), All Weather Cab Premium (P)
Open ROPS Base (B), Open ROPS Premium (P), Cold Weather Cab Premium (P), All Weather Cab Premium (P)
This div for css purpose only
Seat
Vinyl seat with built-in operator presence switch (B), premium mechanical suspension seat (P) with built-in operator presence switch, lap bar and 2 in. wide seat belt
Vinyl seat with built-in operator presence switch (B), premium mechanical suspension seat (P) with built-in operator presence switch, lap bar and 51 mm wide seat belt
This div for css purpose only
Controls
LOADER CONTROL: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. DRIVE CONTROL: Left-hand pilot hydraulic joystick controls machine speed and direction.
LOADER CONTROL: Right-hand pilot hydraulic joystick controls loader lift, lower and tilt, plus intermittent control of auxiliary hydraulic. DRIVE CONTROL: Left-hand pilot hydraulic joystick controls machine speed and direction.
This div for css purpose only
Machine Display
Multi-functional color 4.3 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging and more
Multi-functional color 4.3 inch display/indicator: Engine RPM, engine coolant temperature, engine oil pressure, hydraulic oil temperature, battery voltage, hour meter, fuel level, trip meter, engine diagnostics, system monitoring, fault logging and more
This div for css purpose only
Engine Speed Control
Hand-operated rotary throttle
Hand-operated rotary throttle
This div for css purpose only
ROPS
Meets ISO 3471
Meets ISO 3471
This div for css purpose only
FOPS
Meets ISO 3449
Meets ISO 3449
This div for css purpose only
Operator Restraint Anchorage
Meets ISO 6683 CAL OSHA 1596
Meets ISO 6683 CAL OSHA 1596
This div for css purpose only
Illumination
2 fixed forward-facing LED lights; 1 adjustable rear-facing LED light; 1 interior light; 2 red LED tail lights
2 fixed forward-facing LED lights; 1 adjustable rear-facing LED light; 1 interior light; 2 red LED tail lights
This div for css purpose only
Standard Features
Horn, backup alarm, rear window (P), cup holder (P), phone holder (P), roof panel (P), rear window (P), sound insulation (P), 8-pin attachment connector (P)
Horn, backup alarm, rear window (P), cup holder (P), phone holder (P), roof panel (P), rear window (P), sound insulation (P), 8-pin attachment connector (P)
This div for css purpose only
Optional Features
Rear view camera, turf track with smooth treads, bumper, brush guard, full rail metal seals, 1/4″ polycarbonate front door
Rear view camera, turf track with smooth treads, bumper, brush guard, full rail metal seals, 1/4″ polycarbonate front door
