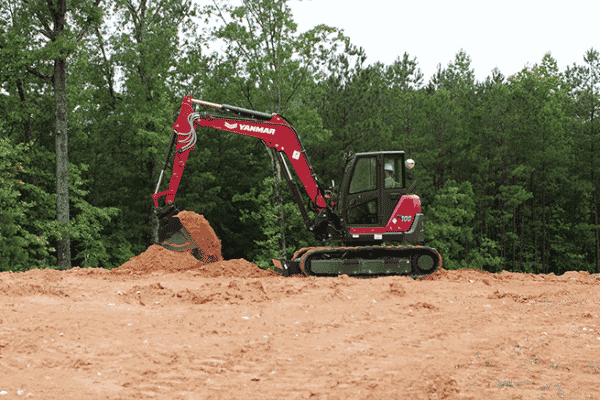

YANMAR Mini Excavator SV100-2A

Contact us for price

Stock status: Call Store for Availability

Meet our largest and most powerful ultra-tight tail mini excavator in the Yanmar line. Bolstered with an impressive 72HP in a Tier 4 Final engine package that is quiet, fuel efficient and clean burning for job sight compliance in the strictest environments. With an impressive digging depth perfectly equipped for jobs that often require much bigger and harder to maneuver excavators, you’ll find the SV100-2A to be perfectly at home on jobs that require big capability but a confined footprint. The ultra-tight turning radius is compact enough that the boom bracket stays entirely within the tracks. And while the outside is all business, you’ll find a long list of standard equipment to help you get more done including standard second auxiliary hydraulic circuit with flow control, auto-shift, two-speed travel to quickly move between dig areas, and a sealed cab that fends off noise, dust, and the elements for year-round performance.

Call Us Now

Specs

Engine

This div for css purpose only
Model
4TNV98CT-VBV
4TNV98CT-VBV
This div for css purpose only
Output
72 HP
53.7 / 2,100 kW/rpm
This div for css purpose only
Type
Water-cooled 4-cylinder diesel
Water-cooled 4-cylinder diesel

Operating Weight

Rubber Track Cab. Rubber Track
21,550 lbs
9.78 t
Steel Track Cab. Steel Track
21,660 lbs
9.83 t

Performance

Max Digging Force, Bucket / Arm
12216 / 9500* lbs (*without quick coupler)
76.0* / 45.8*kN
Traveling Speed, High / Low – Cab. Rubber Track
2.7 / 1.6 MPH
4.4 / 2.5 km/h
Traveling Speed, High / Low – Cab. Steel Track
2.5 / 1.4 MPH
4.0 / 2.2 km/h
Swing Speed
9.1 RPM
9.1 RPM
Boom Swing Angle, (L / R)
60° / 60°
60° / 60°
Gradability
30°
30°

Ground Contact Pressure

Cab. Rubber Track
5.5 PSI
37.9 kPa
Cab. Steel Track
5.6 PSI
38.8 kPa

Hydraulic System

Pump Capacity
20.5 + 20.5 + 15.2 + 5.3 GPM
77.7 + 77.7 + 57.5 + 20 L/min
Main Relief Set Pressure
3,988 + 3,988 + 3,481 + 421 PSI
27.5 + 27.5 + 24.0 + 2.9 MPa

Blade Dimensions

Width
7’7″
2,320mm
Stroke, Raise / Lower from G.L. – Cab. Rubber Track
1’8″ / 1’6″
520mm / 460mm

Fuel Tank

This div for css purpose only
Capacity
30.3 Gals
115 L
