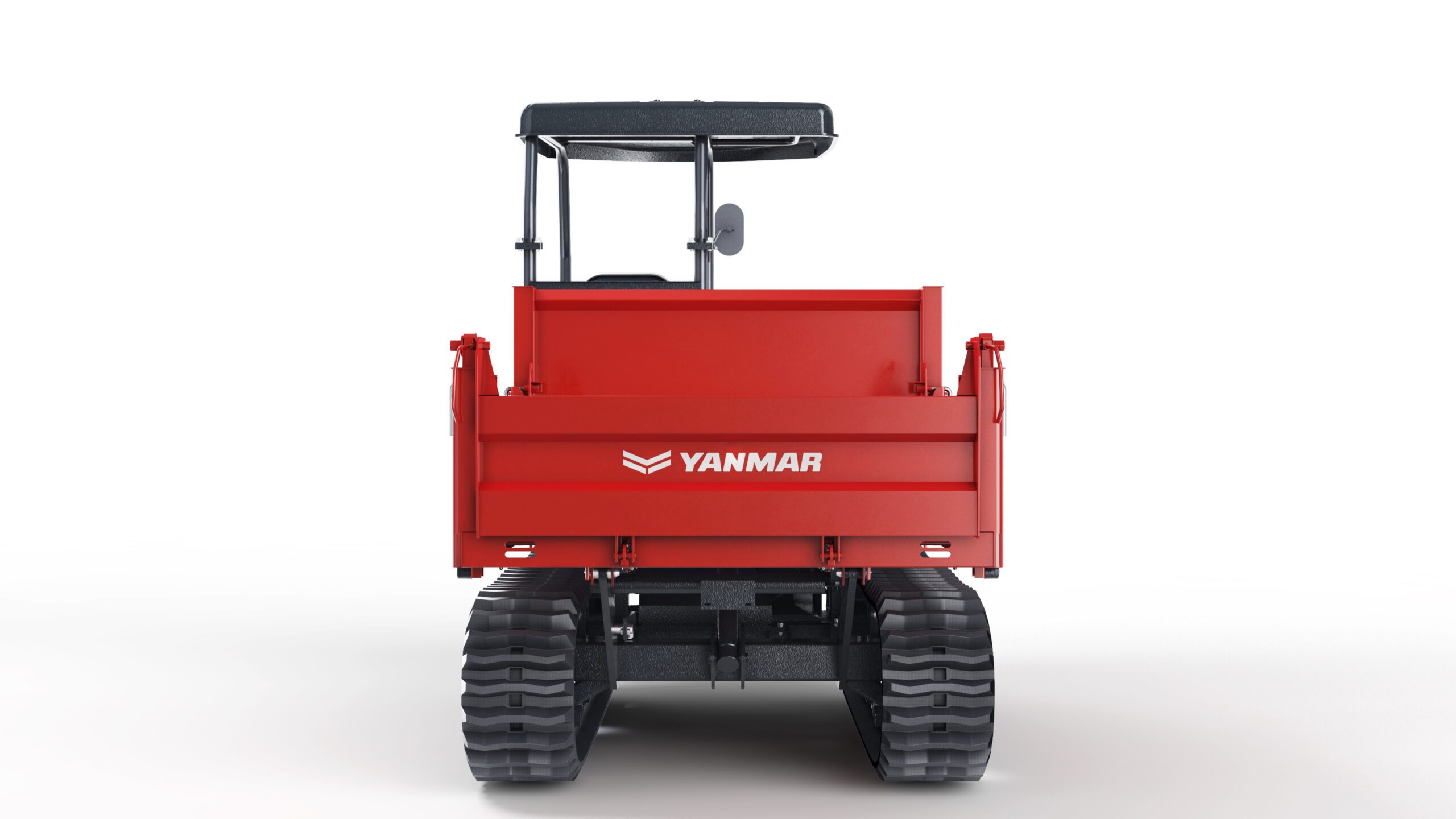

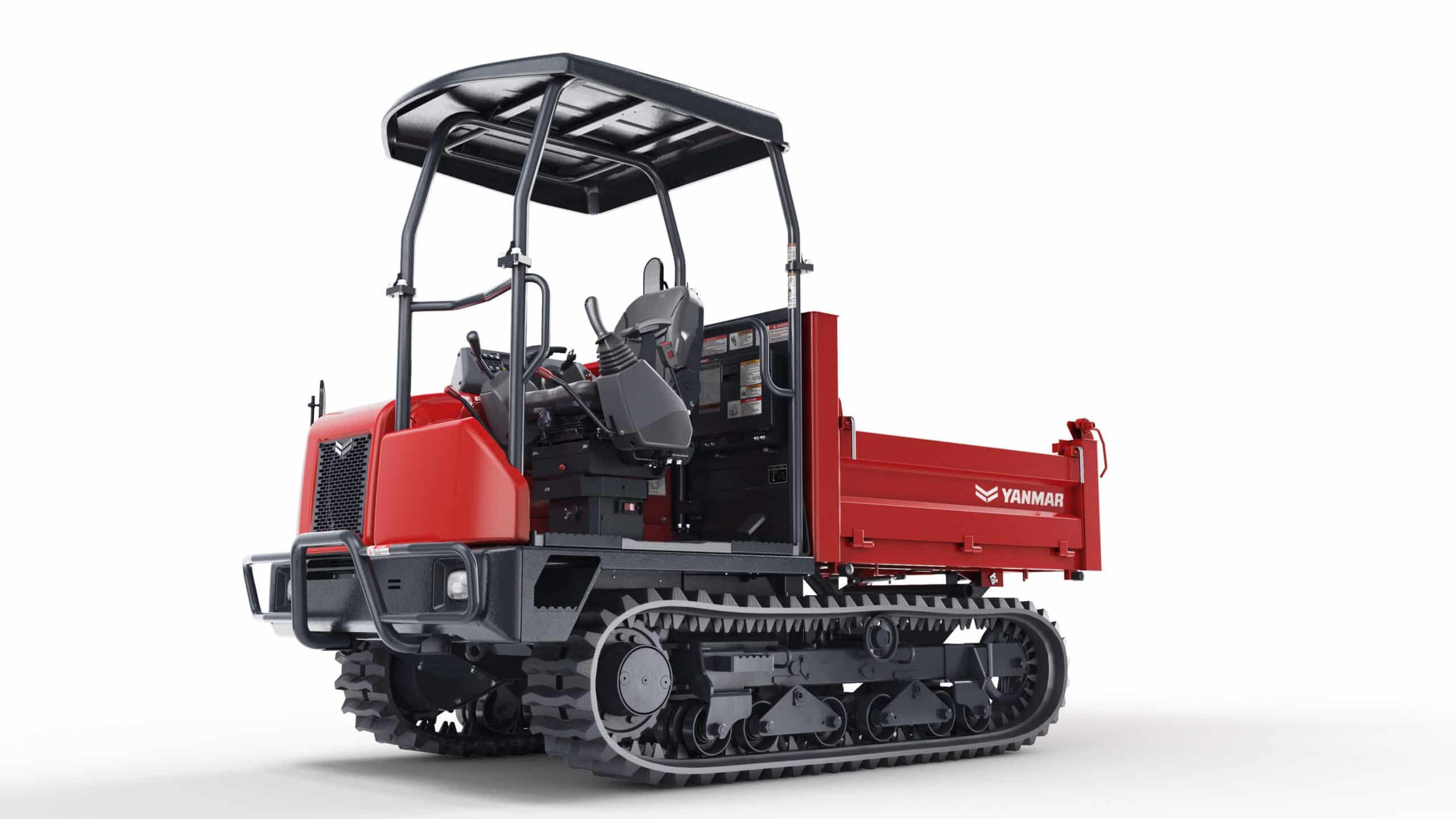

YANMAR Tracked Carrier C30R-3

Contact us for price

Stock status: Call Store for Availability

Don’t let bad weather or wet, muddy, snow covered, sandy or steep slopes slow down your next project or jobsite. When a pickup or dump truck can’t get the job done, rest assured our compact and powerful C30R-3 all-terrain tracked carrier can. With an all-rubber track, you’ll enjoy minimal impact, incredible traction, and amazing stability and capability, even traversing the most challenging terrain. Whether you’re looking to bring material in, excavated material out, or you simply need to transport tools across terrain where wheeled vehicles dare not tread, the C30R-3 all-terrain tracked carrier keeps things moving.

Call Us Now

Specs

Operating Weight

Net, unloaded – Box Shape
5,843 lbs
2,650 kg
Net, unloaded – V Shape
6,317 lbs
2,865 kg

Transmission

This div for css purpose only
Type
Variable Speed 2 Pump, 2 Motor Hydrostatic (HST)
2 Motor Hydrostatic (HST)

Undercarriage

Track Type
Steel-Reinforced Rubber Track
Steel-Reinforced Rubber Track
Track Width
1’1″
320 mm
Min. Ground Clearance – Bow Shape
10″
265 mm
Min. Ground Clearance – V Shape
11″
280 mm
Ground Contact Pressure – Bow Shape w/o load
4.0 PSI
27.5 kPa
Ground Contact Pressure – Bow Shape w/ load
4.3 PSI
29.8 kPa
Ground Contact Pressure – V Shape w/o Load
7.8 PSI
53.5 kPa
Ground Contact Pressure – V Shape w/load
8.1 PSI
55.7 kPa

Performance

This div for css purpose only
Max. Payload – One-way Dump Type
5,512 lbs
2,500 kg
This div for css purpose only
Max. Dumping Angle – One-way Dump Type
58°
58°
This div for css purpose only
Max. Dumping Angle – Swivel-dump Type
85°
85°
This div for css purpose only
Dump Clearance – One-way Dump Type
1’6″
455 mm
This div for css purpose only
Dump Clearance – Swivel-dump Type
2’5″
730 mm
This div for css purpose only
Dump Body Capacity Struck – One-way Dump Type
1.15 yd³
0.88 m³
This div for css purpose only
Dump Body Capacity Heaped – Swivel-dump Type
1.47 yd³
1.13 m³
This div for css purpose only
Dump Body Capacity Struck – One-way Dump Type
1.62 yd³
1.24 m³
This div for css purpose only
Dump Body Capacity Heaped – Swivel-dump Style
1.96 yd³
1.50 m³
This div for css purpose only
Travel Speed – Forward
Low Speed 0-3.5 mph / High Speed 0-6.8 mph
Low Speed 0-5.7 km/h / High Speed 0-11.0 km/h
This div for css purpose only
Travel Speed – Reverse
Low Speed 0-3.5 mph / High Speed 0-6.8 mph
Low Speed 0-5.7 km/h / High Speed 0-11.0 km/h
