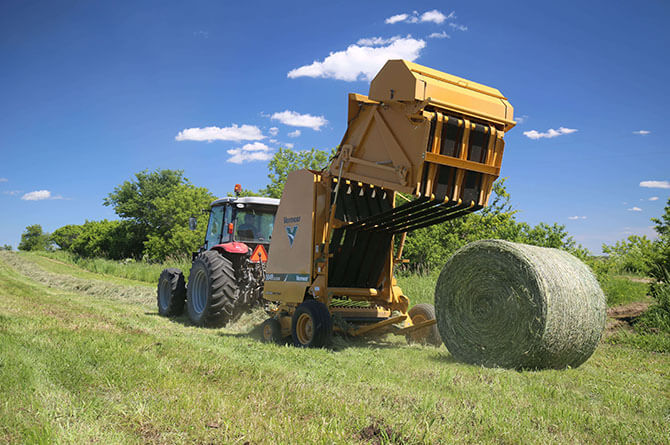

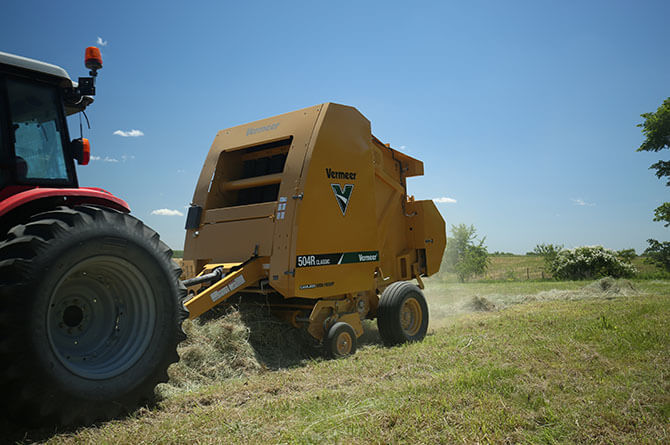

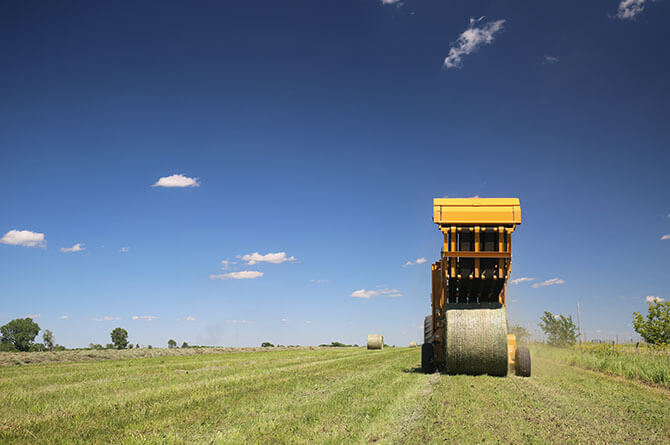

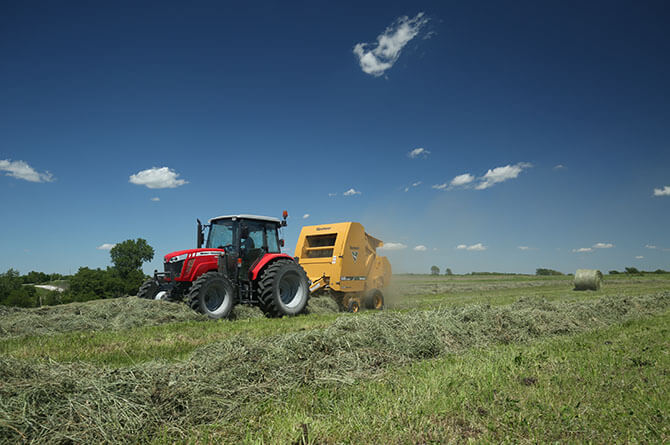

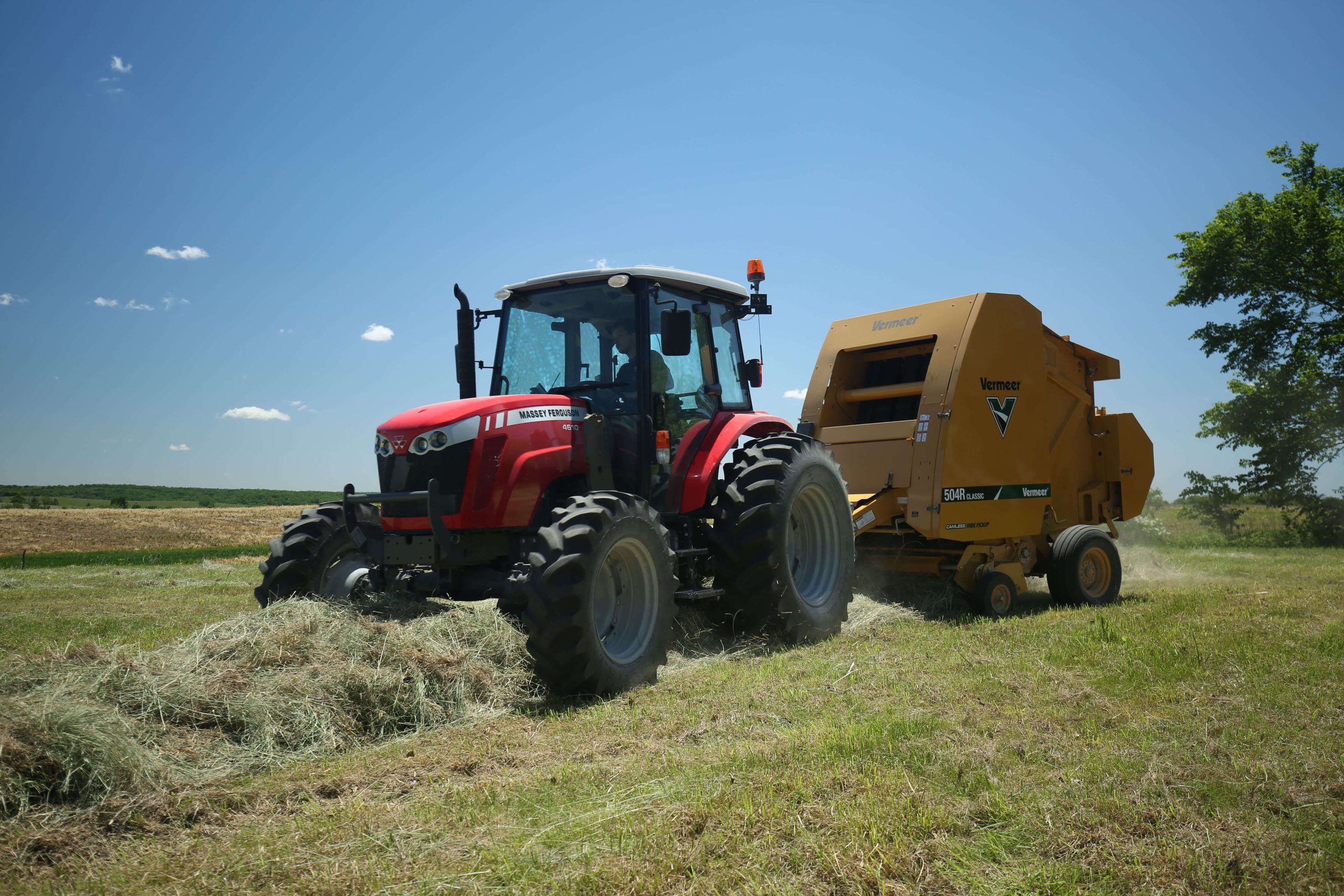

Vermeer 504R Classic Baler

Vermeer 504R Classic Baler

Contact us for price

Stock status: Call Store for Availability

Only put up a limited number of bales a year? The Vermeer 504R Classic baler is designed for part-time operators who want good value in a dependable baler. A wide pickup and optional bale shape sensors make baling easier and with minimal setup and adjustments required, you’ll feel like you’ve been baling with it forever. A camless pickup and heavy-duty components maximize durability for prolonged machine life. And considering the price and the 3-year pickup warranty, the longer you bale with it, the better deal it can become.

Call Us Now

Specs

  • Bale Size

    • Bale Diameter 36 in - 60 in (91.4 cm - 152.4 cm)
    • Bale Width 47 in 119.4 cm
    • Maximum bale weight 1000 lbs 453.6 kg

  • Dimensions and Weights

    • Length standard 156 in 396.2 cm
    • Length with net 173 in 439.4 cm
    • Length with ramp 169 in 429.3 cm
    • Height 107 in 271.8 cm
    • Width with standard tires 100 in 254 cm
    • Tires Standard - 11L-15; Optional - 31 x 13.5-5
    • Weight fully optioned 5260 lbs 2385.9 kg

  • Bale Forming Chamber

    • Drive Roller Size 4.78 in (12.1 cm)
    • Idler roller size 3.5 in (8.9 cm)
    • Start Roller Size 4.5 in 11.4 cm
    • Belt Type Standard mini rough top
    • Number of Belts 5
    • Width of Belt 6.8 in 17.3 cm
    • Length of belt (long) 465.5 in 1182.4 cm
    • Length of belt (short) 455.5 in 1157 cm
    • Type of Lace Alligator rivet

  • Drive System

    • Driveline 540 rpm, standard lube, radial pin clutch
    • Torque protection pickup Radial pin clutch
    • Roller chains Single 60
    • Bearing and Sprocket Configuration Round drive shafts and bearings

  • Tractor Requirements

    • PTO horsepower minimum 40 hp 29.8 kw
    • PTO horsepower recommended 50 hp 37.3 kw

  • Pickup

    • Pickup type Camless wide
    • Width tooth to tooth 60 in 152.4 cm
    • Tooth Bars 4
    • Number of Teeth (48) double steel coil
    • Teeth spacing 2.83 in (7.2 cm)
    • Stripper bands Steel
    • Flotation Optional gauge wheels 4.8-16 HD semi-pneumatic with spring assist
    • Pickup Lift Manual standard, hydraulic optional
    • 3-year pickup warranty Standard

  • Control system

    • Control system type Atlas™ control system
    • Display 4.3 in (10.9 cm) color touch screen
    • Field Statistics 10 fields
    • Bale shape indicators Optional
    • Moisture Optional - up to 27%
    • Bales per hour Standard

  • Density

    • Bale density adjustments Standard manual through hydraulic relief valve
    • Density readings Optional physical gauge

  • Bale tie system

    • Twine system Optional

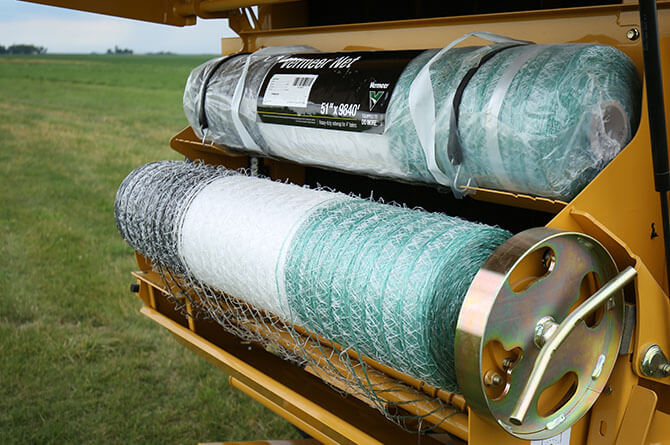

    • Netwrap system Optional
    • Net tension control via mechanical adjustment
    • Extra roll storage Standard

  • Features

    • Bale ramp Optional spring-loaded
    • Fire extinguisher, safety chain Optional
