Specs

• Bale Size

  • Bale Diameter 36 in - 72 in (91.4 cm - 182.9 cm)
  • Bale Width 47 in 119.4 cm
  • Maximum bale weight 2000 lbs 907.2 kg

• Dimensions and Weights

  • Length standard 164 in 416.6 cm
  • Length with net 184 in 467.4 cm
  • Length with ramp 198 in 502.9 cm
  • Height 121 in 307.3 cm
  • Width with standard tires 101 in 256.5 cm
  • Tires 14L-16.1
  • Weight fully optioned 6820 lbs 3093.5 kg

• Bale Forming Chamber

  • Drive Roller Size 5.5 in (14 cm)
  • Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm)
  • Start Roller Size 5.3 in 13.3 cm
  • Belt Type Standard mini rough top
  • Number of Belts 6
  • Width of Belt 6.8 in 17.3 cm
  • Length of belt (long) 563.5 in 1431.3 cm
  • Length of belt (short) 557 in 1414.8 cm
  • Type of Lace Alligator rivet

• Drive System

  • Driveline 540 rpm, standard lube, friction clutch
  • Torque protection pickup Radial pin clutch
  • Roller chains Single 60 and 80
  • Bearing and Sprocket Configuration Hex drive shafts and bearings

• Tractor Requirements

  • PTO horsepower minimum 60 hp 44.7 kw
  • PTO horsepower recommended 80 hp 59.7 kw

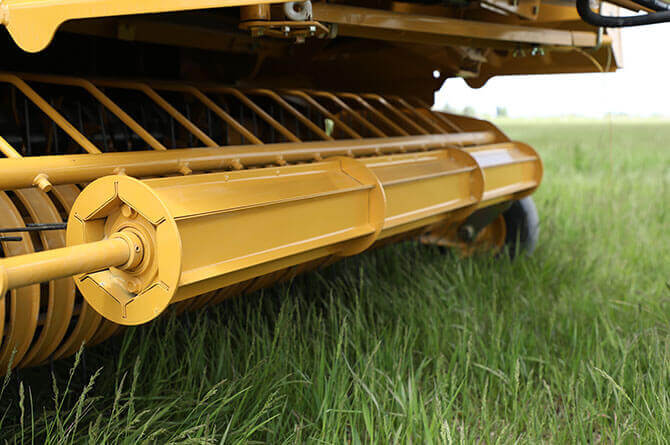

• Pickup

  • Pickup type Camless wide
  • Width tooth to tooth 70.5 in 179.1 cm
  • Width on outside flair 73.8 in 187.5 cm
  • Tooth Bars 4
  • Number of Teeth (56) double steel coil
  • Teeth spacing 2.83 in (7.2 cm)
  • Stripper bands Steel
  • Flotation Gauge wheels 4.8 - 16 HD semi-pneumatic with spring assist
  • Pickup Lift Manual standard, hydraulic optional
  • 3-year pickup warranty Standard

• Control system

  • Control system type Atlas™ control system
  • Display 4.3 in (10.9 cm) color touch screen
  • Field Statistics 10 fields
  • Bale shape indicators Standard
  • Moisture Optional - up to 27%
  • Bales per hour Standard

• Density

  • Bale density adjustments Standard through control system monitor
  • Density readings Optional physical gauge
  • Cylinder size 2.5 in (6.4 cm)

• Bale tie system

  • Twine system Optional
  • Netwrap system Optional
  • Net gauge via control system Standard
  • Net tension control via control system
  • Netlift system Optional
  • Extra roll storage Standard

• Features

  • Bale ramp Optional spring-loaded
  • Fire extinguisher, safety chain Optional
