Specs

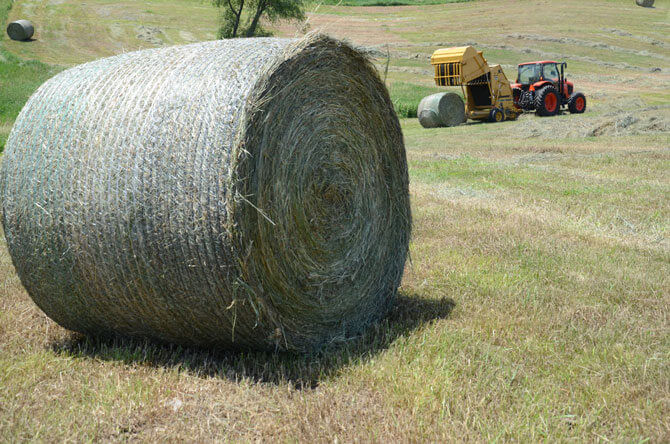

Bale Size
- Bale Diameter 36 in - 66 in (91.4 cm - 167.6 cm)
- Bale Width 61 in 154.9 cm
- Maximum bale weight 1700 lbs 771.1 kg
Dimensions and Weights
- Length standard 160 in 406.4 cm
- Length with net 181 in 459.7 cm
- Length with ramp 171 in 434.3 cm
- Height 111 in 281.9 cm
- Width with standard tires 109 in 276.9 cm
- Tires 31 x 13.5-15
- Weight fully optioned 5850 lbs 2653.5 kg
Bale Forming Chamber
- Drive Roller Size 5.5 in (14 cm)
- Drum roller size 12 in 30.5 cm
- Idler roller size 3.5 in (8.9 cm), 4.8 in (12.1 cm)
- Start Roller Size 4.5 in 11.4 cm
- Belt Type Standard mini rough top
- Number of Belts 8
- Width of Belt 6.8 in 17.3 cm
- Length of belt (long) 492 in 1249.7 cm
- Length of belt (short) 482 in 1224.3 cm
- Type of Lace Alligator rivet
Drive System
- Driveline 540 rpm, standard lube, friction clutch
- Torque protection pickup Radial pin clutch
- Bearing and Sprocket Configuration Round drive shafts and bearings — hex shaft on drum
Tractor Requirements
- PTO horsepower minimum 60 hp 44.7 kw
- PTO horsepower recommended 75 hp 55.9 kw
Pickup
- Pickup type Standard
- Width tooth to tooth 57 in 144.8 cm
- Width on outside flair 72 in 182.9 cm
- Width of Haysaver wheels *listed for select models only 87 in 221 cm
- Tooth Bars 5
- Number of Teeth (50) double rubber-mounted
- Flotation Spring assist
- Pickup Lift Manual
Control system
- Control system type Bale Expertâ„¢
- Display Monochrome LCD screen
- Bale shape indicators Standard
- Moisture Standard - up to 27%
Density
- Bale density adjustments Manual adjustment on relief valve
- Density readings Physical gauge
- Cylinder size 2.5 in (6.4 cm)
Bale tie system

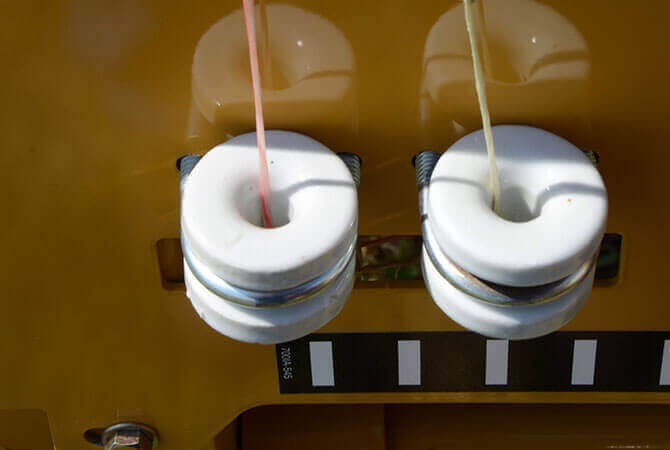

- Twine system Optional

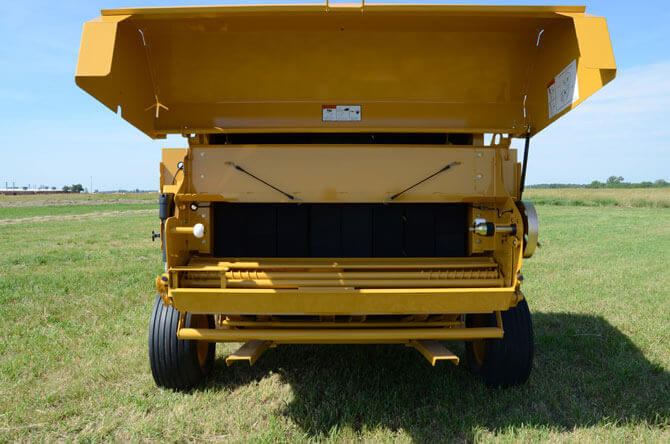

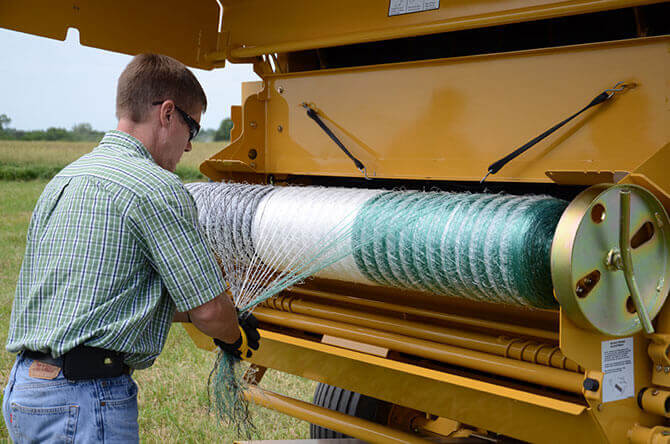

- Netwrap system Optional
- Net tension control via mechanical adjustment
- Extra roll storage Standard
Features
- Bale ramp Optional spring-loaded
- LED maintenance lights Optional
- Fire extinguisher, safety chain Optional
