Vermeer TE1710 Tedder

Contact us for price

Stock status: Call Store for Availability

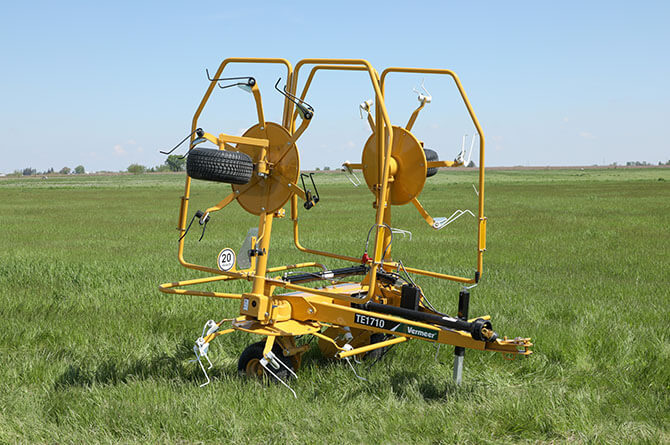

A unique hook tine design allows the tedder to pick up and spread large amounts of crop by creating a “bottoms-up” motion for even distribution and quick crop aeration.

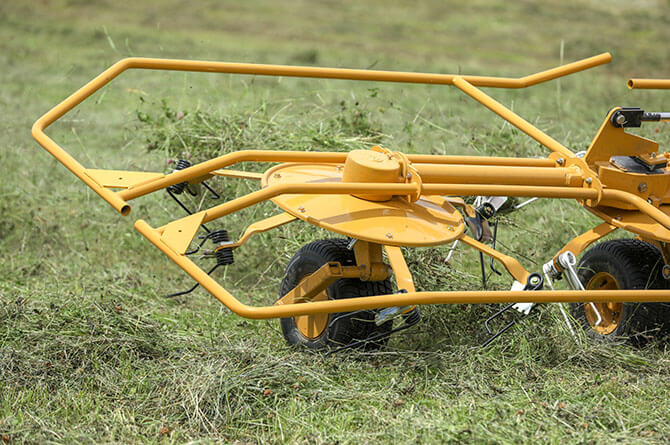

The large, durable basket wheels with 5-bolt hubs offer ground contouring and flotation in the field and a smooth ride on the road. Plus, it includes the convenient maintenance and durability you’ve come to expect in Vermeer equipment. Vermeer TE1710: spread the word.

*Tim Schnakenberg, University of Missouri, Makin Hay Minute: Tedders: Why and When to Use Them. See the video.

Call Us Now

Specs

  • Dimensions and Weights

    • Tedding width 17 ft 5.2 m
    • Transport Height 8.5 ft 2.6 m
    • Transport Width 9 ft 2.7 m
    • Transport Length 7.2 ft 2.2 m
    • Total Weight 1480 lbs 671.3 kg
    • Tongue Weight 240 lbs 108.9 kg
    • Tire size 18.5 x 8.5-8

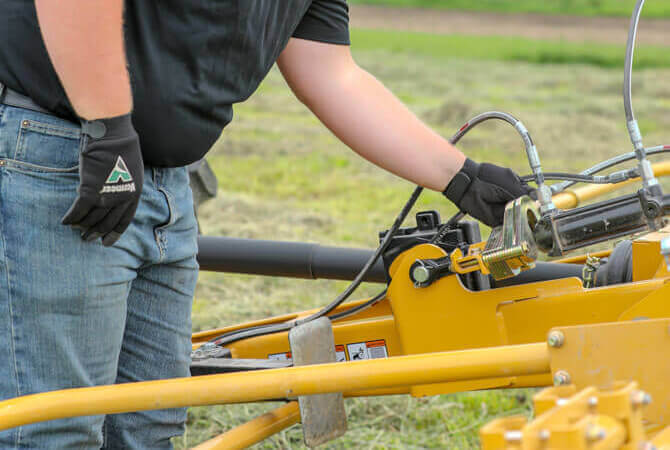

    • Basket tilt and adjustment Hydraulic, toolless adjustment
    • Number of Baskets 4
    • Tine Arms per Basket 6
    • Type of Tine Hook tine
    • Torque protection driveline Radial pin clutch
  • Tractor Requirements

    • PTO Horsepower Requirements 34 hp 25.4 kw
    • Hydraulic requirements 1 double-acting
    • Hydraulic pressure minimum 2100 psi 144.8 bar
    • Hitch Drawbar clevis connection
    • Drive PTO 540 rpm
  • Features

    • SMV Sign Standard
