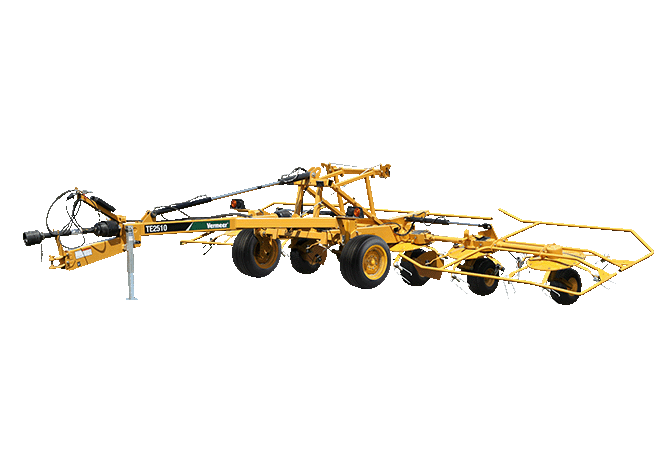

Vermeer TE2510 Tedder

Contact us for price

Stock status: Call Store for Availability

A unique hook tine design allows the tedder to pick up and spread large amounts of crop by creating a “bottoms-up” motion for even distribution and quick crop aeration.

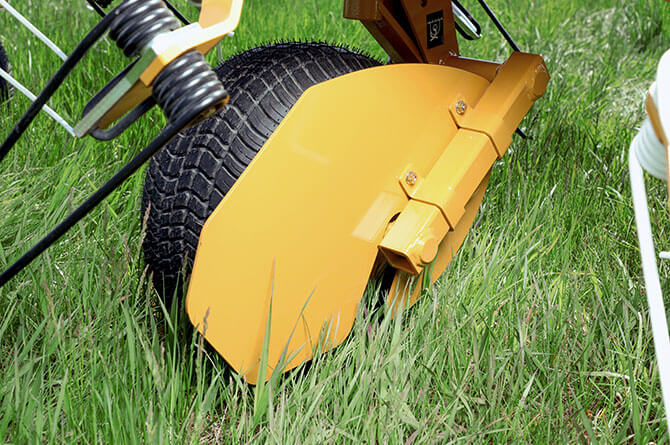

The large, durable basket wheels with 5-bolt hubs offer ground contouring and flotation in the field. The carted frame with large transport tires provides a smooth ride on the road. Plus, it includes the convenient maintenance and durability you’ve come to expect in Vermeer equipment. Vermeer TE2510: spread the word.

*Tim Schnakenberg, University of Missouri, Makin Hay Minute: Tedders: Why and When to Use Them. See the video.

Call Us Now


  • Dimensions and Weights

    • Tedding width 25 ft 7.6 m
    • Transport Height 9.8 ft 3 m
    • Transport Width 9.8 ft 3 m
    • Transport Length 15.3 ft 4.7 m
    • Total Weight 3200 lbs 1451.5 kg
    • Tongue Weight 900 lbs 408.2 kg
    • Tire size 18.5 x 8.5-8
    • Transport tire size 11L-15 8
    • Basket tilt and adjustment Hydraulic, adjustable by changing wheel frame/main frame mount
    • Number of Baskets 6
    • Tine Arms per Basket 6
    • Type of Tine Hook tine
    • Torque protection driveline Radial pin clutch
  • Tractor Requirements

    • PTO Horsepower Requirements 47 hp 35 kw
    • Hydraulic requirements 1 double-acting with floating position
    • Hydraulic pressure minimum 2000 psi 137.9 bar
    • Hitch Drawbar clevis connection
    • Drive PTO 540 rpm
  • Features

    • SMV Sign Standard
