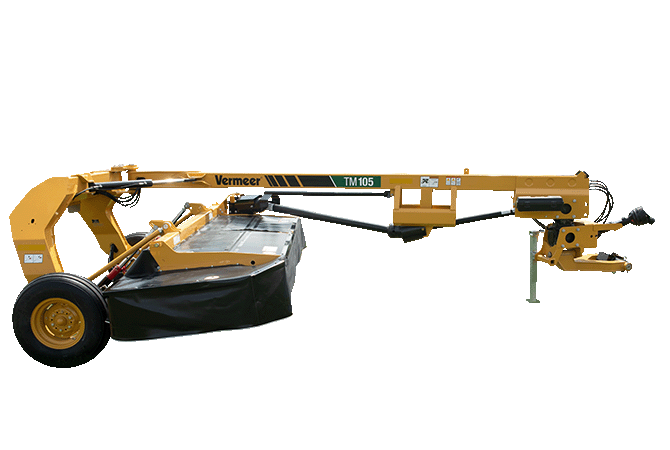

Vermeer TM105 Trailed Mower
Vermeer TM105 Trailed Mower
Vermeer TM105 Trailed Mower
Vermeer TM105 Trailed Mower

Vermeer TM105 Trailed Mower

Contact us for price

Stock status: Call Store for Availability

The TM105 trailed mower is a mid-sized option — 10.7-ft (3.2-m) cutting width — for operators who are looking for convenient use and maintenance without sacrificing premium features. It delivers a consistent, clean cut in the field with a nitrogen-charged hydraulic suspension system that optimizes ground pressure. Smart features are designed for ease of maintenance. With the option of a 2-point quick hitch or drawbar swivel hitch, you can pick the hitch that meets your mowing style and effortlessly maneuver the field.

Call Us Now

Specs

  • Dimensions and Weights

    • Transport Height 61 in 154.9 cm
    • Transport Width - ends up 10.7 ft 3.3 m
    • Transport Width - ends down 11.4 ft 3.5 m
    • Transport Length 18.2 ft 5.5 m
    • Cutting Width 10.7 ft 3.3 m
    • Working Height 61 in 154.9 cm
    • Working Width 11.4 ft 3.5 m
    • Working Length 17.2 ft 5.2 m
    • Mower swung out offset 50 in 127 cm
    • Cutter bar lift height clearance 16 in 40.6 cm
    • Total Weight 3300 lbs 1496.9 kg
    • Tongue Weight 1200 lbs 544.3 kg
    • Suspension Hydraulic
    • Torque Protection Driveline: friction disc clutch
    • Tires 11L-15

  • Tractor Requirements

    • Tongue/hitch Drawbar with swivel gearbox, OR 2-point with swivel gearbox, category II or III N
    • Drive PTO 540 rpm
    • PTO horsepower recommended 60 hp 44.7 kw
    • Hydraulic Type 2 remote, single-acting lift, double-acting swing
    • Hydraulic Pressure 1900 psi 131 bar
    • Hydraulic flow rate 6 gpm 22.7 L/min

  • Cutter bar

    • Cutter bar type Q3®
    • Cut height 1 in - 3 in (2.5 cm - 7.6 cm)
    • Number of Discs 7
    • Disc Diameter 23 in 58.4 cm
    • Disc Speed 2700 rpm
    • Number of Blades 14
    • Angle Adjustment Hydraulic pitch control
    • Quick Clip® blade retention system Standard
    • Quick-Change™ shear ring Standard
    • Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
    • 3-year limited cutter bar warranty Standard

  • Features

    • Optional swath formation Optional right crop divider, standard right swath wheel
    • Skid Shoes Standard modular independent skid shoes; Optional topping shoes and wear skids
    • Highway Lights Optional
