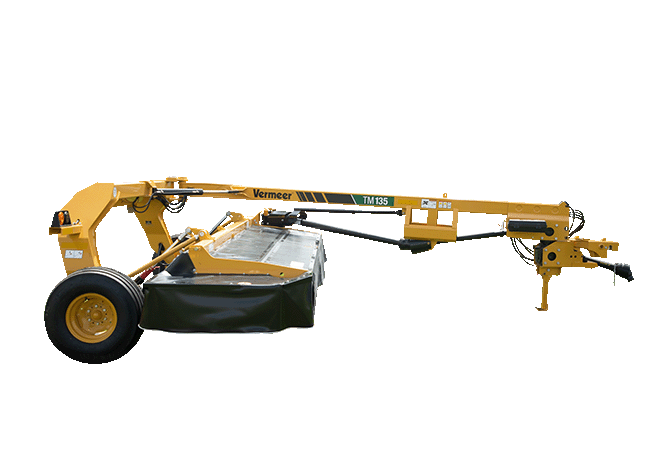

Vermeer TM135 Trailed Mower

Contact us for price

Stock status: Call Store for Availability

The Vermeer TM135 is a mid-sized option — 13.5 ft (4.1 m) cutting width — for operators who need more capacity but aren’t quite ready for a large trailed mower. A Q3® cutter bar and greaseless vertical driveline are designed to maximize efficiency by minimizing maintenance time. A nitrogen-charged hydraulic suspension system delivers a consistent, clean cut in various crops and ground conditions. Plus, options like a 2-point quick hitch or drawbar hitch, and 540 RPM or 1,000 RPM, you can customize your mower to meet your operation’s needs. This is how you finish fields quickly and efficiently.

Call Us Now

Specs

  • Dimensions and Weights

    • Transport Height 61 in 154.9 cm
    • Transport Width - ends up 13.6 ft 4.1 m
    • Transport Width - ends down 14.3 ft 4.4 m
    • Transport Length 18.2 ft 5.5 m
    • Cutting Width 13.5 ft 4.1 m
    • Working Height 61 in 154.9 cm
    • Working Width 14.3 ft 4.4 m
    • Working Length 17.2 ft 5.2 m
    • Mower swung out offset 50 in 127 cm
    • Cutter bar lift height clearance 16 in 40.6 cm
    • Total Weight 3600 lbs 1632.9 kg
    • Tongue Weight 1200 lbs 544.3 kg
    • Suspension Hydraulic
    • Torque Protection Driveline: friction disc clutch
    • Tires 31x13.5-16
  • Tractor Requirements

    • Tongue/hitch Drawbar with swivel gearbox, OR 2-point with swivel gearbox, category II or III N
    • Drive PTO 540 rpm or 1,000 rpm
    • PTO horsepower recommended 70 hp 52.2 kw
    • Hydraulic Type 2 remote, single-acting lift, double-acting swing
    • Hydraulic Pressure 1900 psi 131 bar
    • Hydraulic flow rate 6 gpm 22.7 L/min

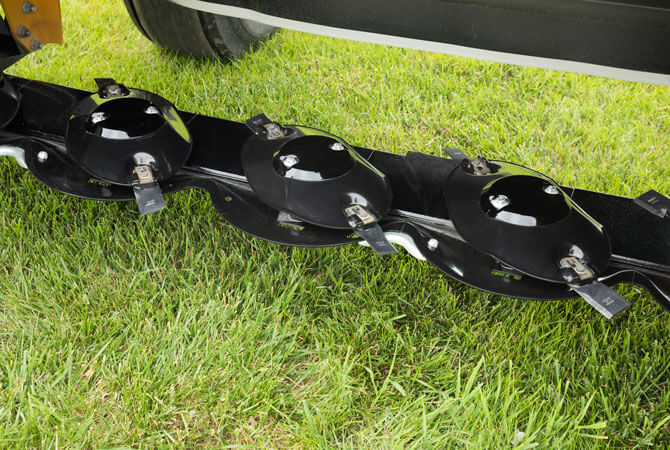

  • Cutter bar

    • Cutter bar type Q3®
    • Cut height 1 in - 3 in (2.5 cm - 7.6 cm)
    • Number of Discs 9
    • Disc Diameter 23 in 58.4 cm
    • Disc Speed 2700 rpm
    • Number of Blades 18
    • Angle Adjustment Hydraulic pitch control
    • Quick Clip® blade retention system Standard
    • Quick-Change™ shear ring Standard
    • Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
    • 3-year limited cutter bar warranty Standard
  • Features

    • Optional swath formation Optional right crop divider, standard right swath wheel
    • Skid Shoes Standard modular independent skid shoes; Optional topping shoes and wear skids
    • Highway Lights Standard
