Specs
Dimensions and Weights
- Transport Height 78 in 198.1 cm
- Transport width - standard 8.5 ft 2.6 m
- Transport Length 22 ft 6.7 m
- Cutting Width 15.5 ft 4.7 m
- Working Height 78 in 198.1 cm
- Working Width 22 ft 6.7 m
- Working Length 18 ft 5.5 m
- Total Weight 5900 lbs 2676.2 kg
- Tongue Weight 1580 lbs 716.7 kg
- Suspension Hydraulic
- Torque Protection Driveline: friction disc clutch
- Tires 31x13.5-15
Tractor Requirements
- Tongue/hitch 2-point with swivel gearbox, category II or III N
- Drive PTO 540 or 1000 rpm
- PTO horsepower recommended 85 hp 63.4 kw
- Hydraulic Type 2 double-acting
- Hydraulic Pressure 1500 psi 103.4 bar
- Hydraulic flow rate 6 gpm 22.7 L/min

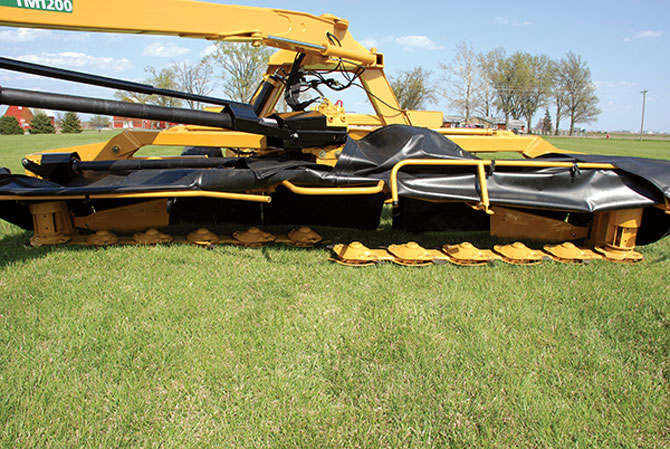

Cutter bar
- Cutter bar type Standard
- Cut height 1.3 in - 3 in (3.2 cm - 7.6 cm)
- Number of Discs 12
- Disc Diameter 19.7 in 50 cm
- Disc Speed 2950 rpm
- Number of Blades 24
- Angle Adjustment Hydraulic pitch control
- Quick Clip® blade retention system Standard
- Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
- 3-year limited cutter bar warranty Standard
Features
- Optional swath formation Optional swathwheel
- Skid Shoes Standard modular independent skid shoes; Optional topping wear skids
- Highway Lights Standard
