Vermeer TM1210 Trailed Mower
Vermeer TM1210 Trailed Mower
Vermeer TM1210 Trailed Mower
Vermeer TM1210 Trailed Mower

Vermeer TM1210 Trailed Mower

Contact us for price

Stock status: Call Store for Availability

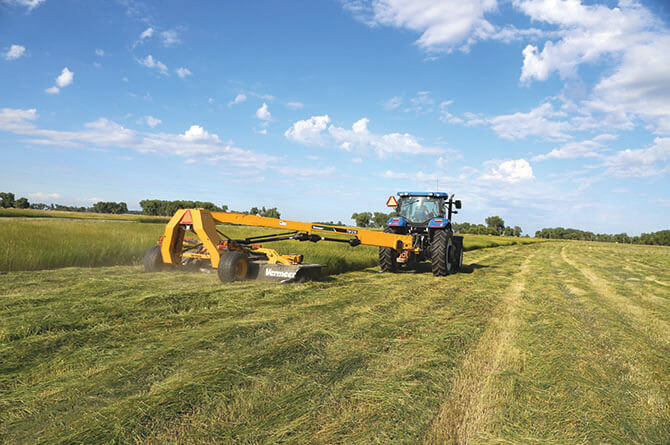

The TM1210 trailed mower is ideal for operators who want to cut more hay in less time, with a 17.7-ft (5.4-m) cutting width and a 9-ft (2.7-m) transport width. Built with convenient features, the TM1210 takes the stress out of operating, transporting and maintaining a large trailed mower. Take a peek at the features below and you’ll see what we mean. The TM1210 delivers big-time productivity with big-time convenience.

Call Us Now

Specs

  • Dimensions and Weights

    • Transport Height 76 in 193 cm
    • Transport width - standard 9.1 ft 2.8 m
    • Transport width with flotation tires 9.8 ft 3 m
    • Transport Length 25.2 ft 7.7 m
    • Cutting Width 17.7 ft 5.4 m
    • Working Height 76 in 193 cm
    • Working Width 23.9 ft 7.3 m
    • Working Length 19.8 ft 6 m
    • Total Weight 6275 lbs 2846.3 kg
    • Tongue Weight 1820 lbs 825.5 kg
    • Suspension Hydraulic
    • Torque Protection Driveline: friction disc clutch
    • Tires Standard 31x13.5-15; Optional 480/45x17 flotation tire

  • Tractor Requirements

    • Tongue/hitch 2-point quick hitch with swivel gearbox, category II or III N
    • Drive PTO 540 or 1000 rpm
    • PTO horsepower recommended 95 hp 70.8 kw
    • Hydraulic Type 3 double-acting (2 double-acting with optional kit)
    • Hydraulic Pressure 1850 psi 127.6 bar
    • Hydraulic flow rate 6 gpm 22.7 L/min

  • Cutter bar

    • Cutter bar type Q3®
    • Cut height 1 in - 3 in (2.5 cm - 7.6 cm)
    • Number of Discs 12
    • Disc Diameter 23 in 58.4 cm
    • Disc Speed 2690 rpm
    • Number of Blades 24
    • Angle Adjustment Hydraulic pitch control
    • Quick Clip® blade retention system Standard
    • Quick-Change™ shear ring Standard
    • Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
    • 3-year limited cutter bar warranty Standard

  • Features

    • Optional swath formation Optional swathwheel
    • Skid Shoes Standard modular independent skid shoes; Optional topping wear skids
    • Highway Lights Standard
