Vermeer TM850 Trailed Mower

Contact us for price

Stock status: Call Store for Availability

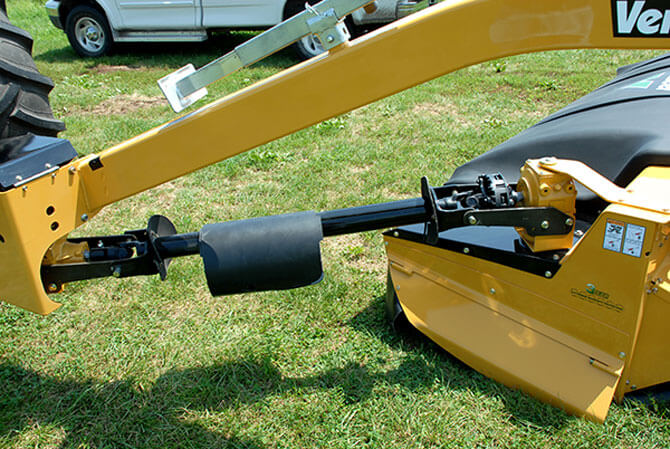

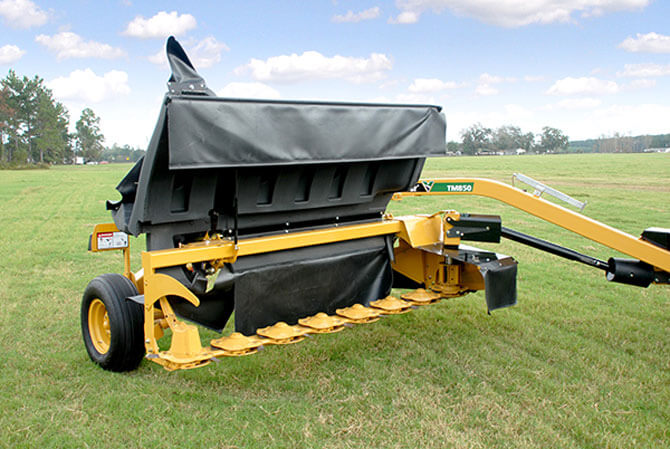

The TM850 trailed mower allows you to mow acres with low horsepower. With its patent-pending, self-aligning driveline system, this heavy-duty trailed mower delivers smooth operation in all tongue positions, enabling it to be easily maneuvered around obstacles in the field. The TM850 pull-behind mower also delivers smooth ground-hugging flotation and control, thanks to its nitrogen-charged hydraulic suspension system.

Call Us Now

Specs

  • Dimensions and Weights

    • Transport Height 61 in 154.9 cm
    • Transport width - standard 10.1 ft 3.1 m
    • Transport Length 13.8 ft 4.2 m
    • Cutting Width 10.5 ft 3.2 m
    • Working Height 61 in 154.9 cm
    • Working Width 15.8 ft 4.8 m
    • Working Length 13.3 ft 4.1 m
    • Total Weight 2420 lbs 1097.7 kg
    • Tongue Weight 700 lbs 317.5 kg
    • Suspension Hydraulic
    • Torque Protection Driveline: friction disc clutch
    • Tires 11L-15
  • Tractor Requirements

    • Tongue/hitch Drawbar
    • Drive PTO 540 rpm
    • PTO horsepower recommended 60 hp 44.7 kw
    • Hydraulic Type 2 double-acting
    • Hydraulic Pressure 2000 psi 137.9 bar
    • Hydraulic flow rate 6 gpm 22.7 L/min
  • Cutter bar

    • Cutter bar type Standard
    • Cut height 1.3 in - 3 in (3.2 cm - 7.6 cm)
    • Number of Discs 8
    • Disc Diameter 19.7 in 50 cm
    • Disc Speed 2965 rpm
    • Number of Blades 16
    • Angle Adjustment Hydraulic pitch control
    • Quick Clip® blade retention system Standard
    • Curtain material 1400 g/m2 polyester woven material with flexible PVC covering
    • 3-year limited cutter bar warranty Standard
  • Features

    • Optional swath formation Optional swathwheel
    • Skid Shoes Standard modular independent skid shoes; Optional topping wear skids
    • Highway Lights Standard
