Specs

• Dimensions and Weights

  • Loading height - standard 109 in 276.9 cm
  • Machine weight - standard 8570 lbs 3887.3 kg
  • Maximum net load 10000 lbs 4535.9 kg
  • Total length 197 in 500.4 cm
  • Transport width - 50-in folding conveyor extension 130 in 330.2 cm
  • Working width - 50-in folding conveyor extension 156 in 396.2 cm

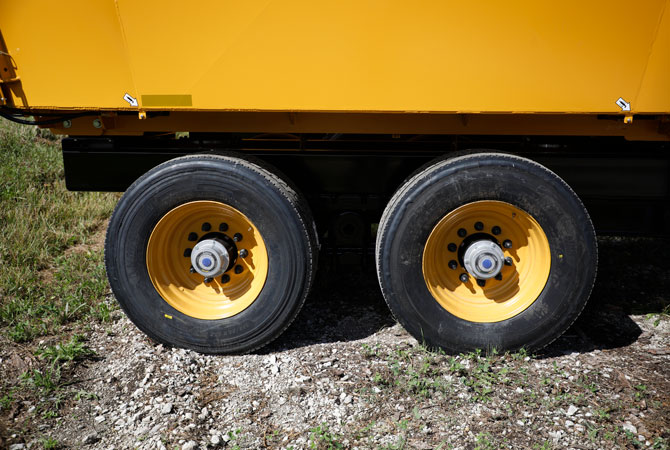

  • Tires (retread) Standard 445/50R-22.5

• Tub and screws

  • Capacity 420 cu ft 11.9 cu m
  • Number of screws 1
  • Number of knives per screw 7
  • Tub wall thickness 1/4 in (6.4 mm)
  • Tub wall material Regular structural steel
  • Floor thickness 5/8 in (15.9 mm)
  • Screw flighting thickness 1/2 in (12.7 mm)
  • Screw flighting material AR200

• Discharge System

  • Discharge style Side conveyor
  • Discharge Direction Right
  • Folding conveyor extension length 50 in (130 cm)

• Tractor Requirements

  • Minimum PTO horsepower 120 hp (89 kW)
  • Recommended PTO horsepower 130 hp 96.9 kw

• Drive System

  • Driveline Standard: 540 rpm, CV; Optional: 1000 rpm, CV
  • Torque Protection Shear bolt
  • Screw rpm 1000-rpm configuration: 48; 540-rpm configuration: 40

• Scale system

  • Scale display Digi-Star EZ2500
  • Number of weigh bars 3
