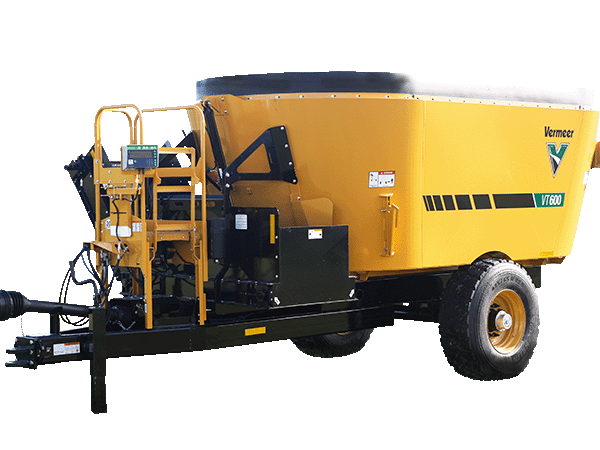

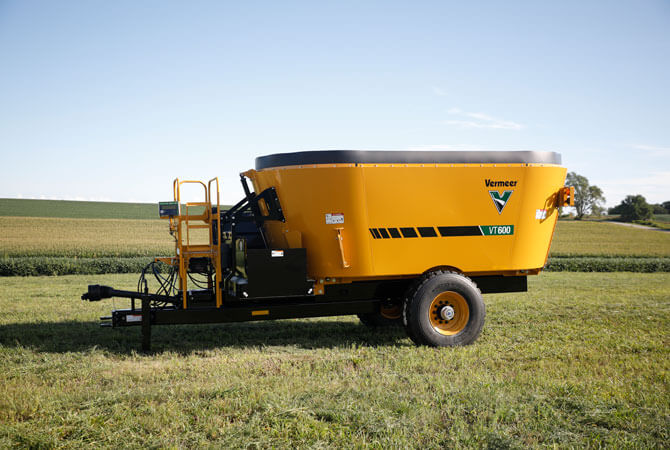

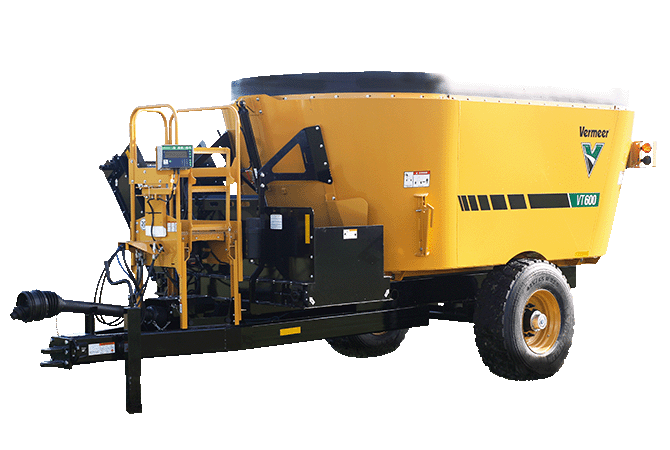

Vermeer VT600 Twin-screw Vertical Mixer

Contact us for price

Stock status: Call Store for Availability

Looking for thorough mixing, optimal cleanout and low loading height? If so, the Vermeer VT600 twin-screw vertical mixer is for you. This mixer features a low loading height at 109 in (279.6 cm) and performance-enhancing features. The overlapping screw design pulls feed from opposite ends of the tub for efficient mixing. Offset baffles create a clear path for feed to move through.

Call Us Now

Specs

  • Dimensions and Weights

    • Loading height - standard 109 in 276.9 cm
    • Machine weight - standard 13780 lbs 6250.5 kg
    • Maximum net load 19000 lbs 8618.3 kg
    • Total length 273 in 693.4 cm
    • Transport width - 50-in folding conveyor extension 113 in 287 cm
    • Working width - 50-in folding conveyor extension 130 in 330.2 cm
    • Tires (retread) Standard 425/65R-22.5; Optional 255/70R-22.5 dual
  • Tub and screws

    • Capacity 600 cu ft 17 cu m
    • Number of screws 2
    • Number of knives per screw 5
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material AR200
    • Floor thickness 3/4 in (19.1 mm)
    • Screw flighting thickness 5/8 in (15.9 mm)
    • Screw flighting material AR200
  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
    • Rear discharge door Optional
  • Tractor Requirements

    • Minimum PTO horsepower 140 hp (100 kW)
    • Recommended PTO horsepower 150 hp 111.9 kw
  • Drive System

    • Driveline 1,000 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 39 (1-speed); 39/26 (2-speed)
  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard
