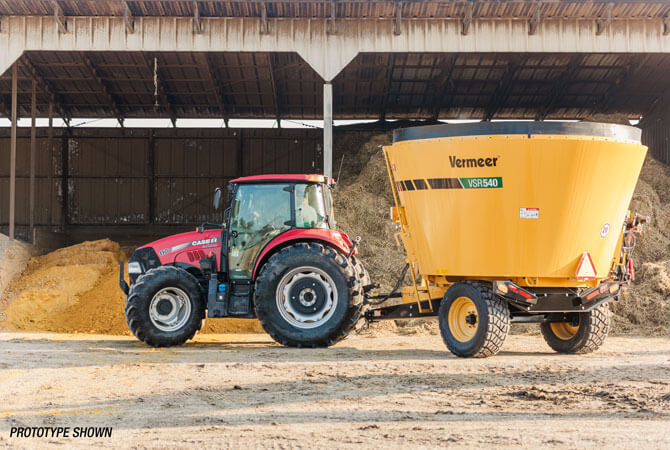

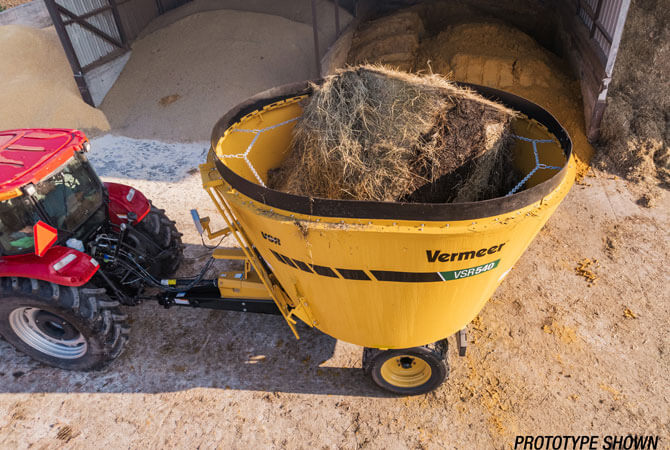

Vermeer VSR540 Single-screw Vertical Mixer

Vermeer VSR540 Single-screw Vertical Mixer

Contact us for price

Stock status: Call Store for Availability

Built for cow-calf producers who want to maximize the value of high-roughage feed rations, the Vermeer VSR540 single-screw vertical mixer combines durability, reliability and performance for full-time or seasonal use. Equipped with essential features and designed for low-maintenance ownership, these mixers deliver ample processing power with virtually no spillage.

Call Us Now

Specs

  • Dimensions and Weights

    • Loading height - standard 120 in 304.8 cm
    • Machine weight - standard 8920 lbs 4046 kg
    • Maximum net load 11000 lbs 4989.5 kg
    • Total length 201 in 510.5 cm
    • Transport width - 50-in folding conveyor extension 132 in 335.3 cm
    • Working width - 50-in folding conveyor extension 158 in 401.3 cm

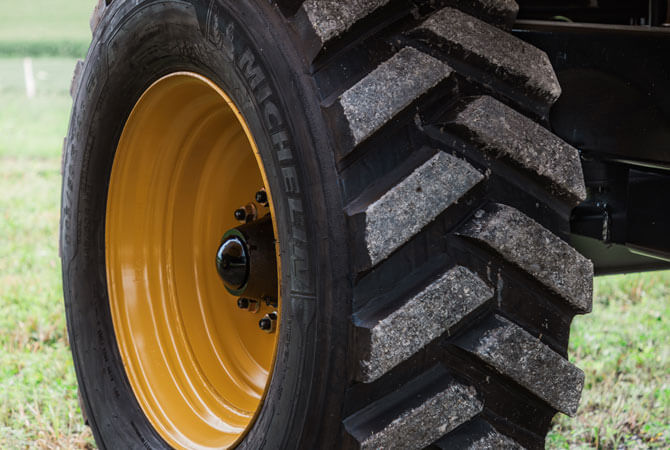

    • Tires (retread) Standard 445/50R-22.5

  • Tub and screws

    • Capacity 540 cu ft 15.3 cu m
    • Number of screws 1
    • Number of knives per screw 7
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material Regular structural steel
    • Floor thickness 5/8 in (15.9 mm)
    • Screw flighting thickness 1/2 in (12.7 mm)
    • Screw flighting material AR200

  • Discharge System

    • Discharge style Side conveyor
    • Discharge Direction Right
    • Folding conveyor extension length 50 in (130 cm)

  • Tractor Requirements

    • Minimum PTO horsepower 130 hp (97 kW)
    • Recommended PTO horsepower 150 hp 111.9 kw

  • Drive System

    • Driveline Standard: 1000 rpm, CV; Optional: 540 rpm, CV
    • Torque Protection Shear bolt
    • Screw rpm 1000-rpm configuration: 48 (1 speed) or 48/32 (2 speed); 540-rpm configuration: 40 (1 speed) or 40/27 (2 speed)

  • Scale system

    • Scale display Digi-Star EZ2500
    • Number of weigh bars 3
