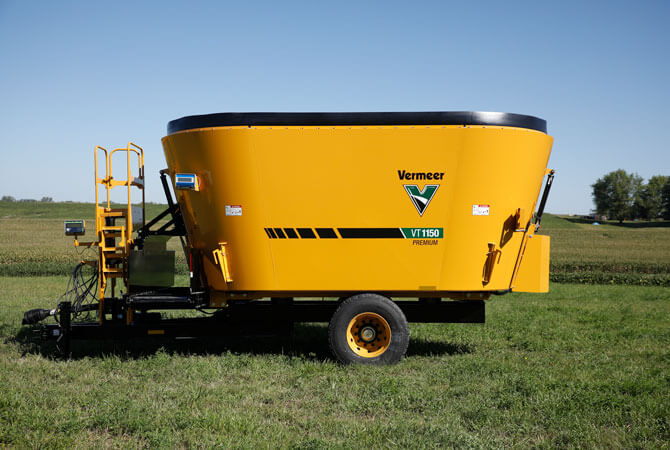

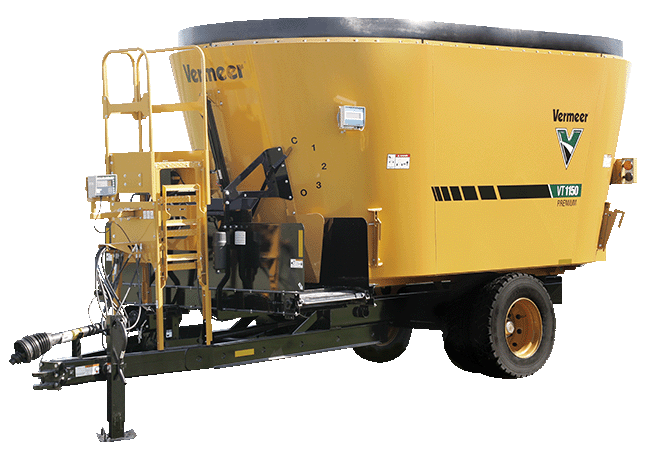

Vermeer VT1150 Premium Twin-screw Vertical Mixer

Contact us for price

Stock status: Call Store for Availability

With a heavy-duty planetary and larger size for maximum load capacity, the VT1150 Premium twin-screw vertical mixer is ideal for large operations. A standard planetary cooling system and optional two-speed gearbox cooling allow for hours of constant use — translating into maximized component life.

Call Us Now

Specs

  • Dimensions and Weights

    • Loading height - standard 139 in 353.1 cm
    • Machine weight - standard 24800 lbs 11249.1 kg
    • Maximum net load 30000 lbs 13607.8 kg
    • Total length 303 in 769.6 cm
    • Transport width - 50-in folding conveyor extension 120 in 304.8 cm
    • Transport width - 119-in bi-directional conveyor 119 in 302.3 cm
    • Working width - 50-in folding conveyor extension 138 in 350.5 cm
    • Working width - 119-in bi-directional conveyor 119 in 302.3 cm

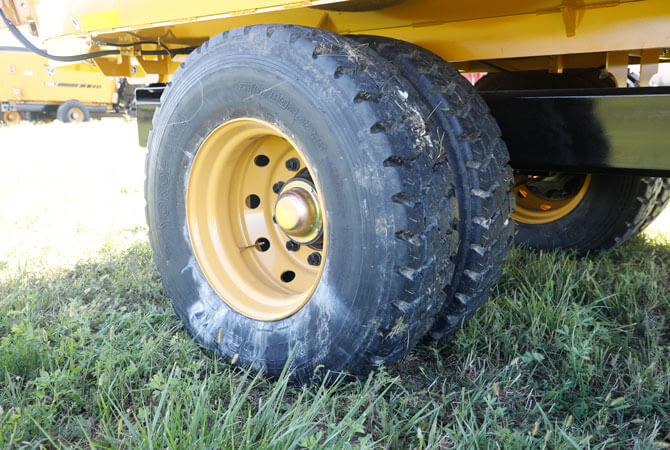

    • Tires (retread) Standard 315/80R-22.5 dual; Optional 255/70R-22.5 dual, tandem; 445/50R-22.5 tandem
  • Tub and screws

    • Capacity 1150 cu ft 32.6 cu m
    • Number of screws 2
    • Number of knives per screw 11
    • Tub wall thickness 3/8 in (9.5 mm)
    • Tub wall material AR200
    • Floor thickness 1 in (2.5 cm)
    • Screw flighting thickness 3/4 in (19.1 mm)
    • Screw flighting material AR200
  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)

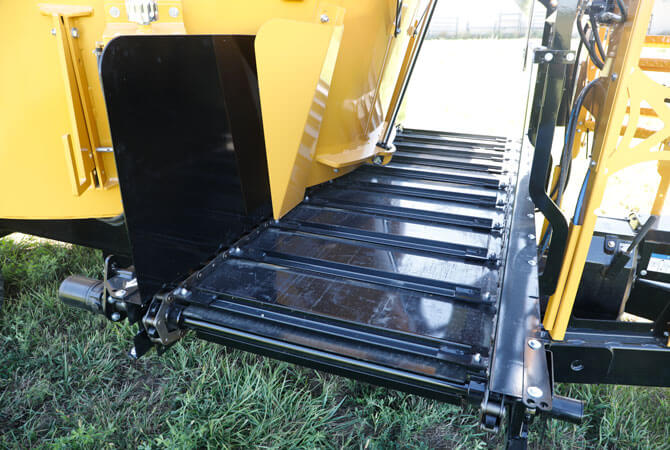

    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift

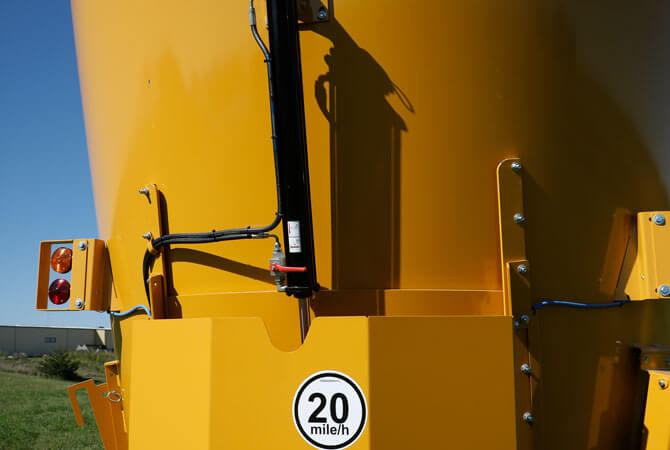

    • Rear discharge door Optional
  • Tractor Requirements

    • Minimum PTO horsepower 190 hp (2-speed) (140 kW)
    • Recommended PTO horsepower 220 hp 164.1 kw
  • Drive System

    • Driveline 1,000 rpm, CV

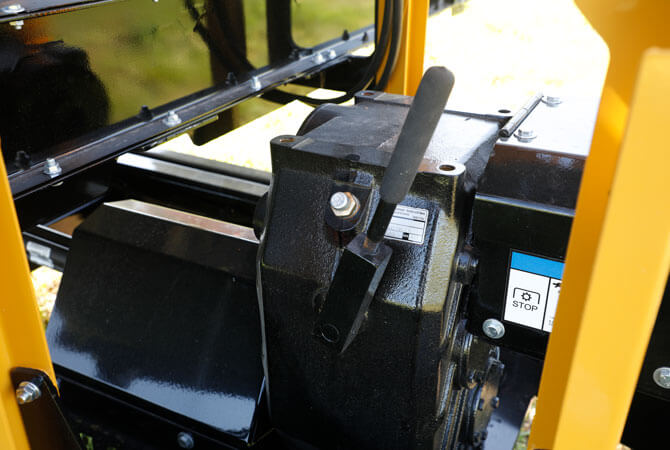

    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 34 (1-speed); 34/23 (2-speed)
  • Scale system

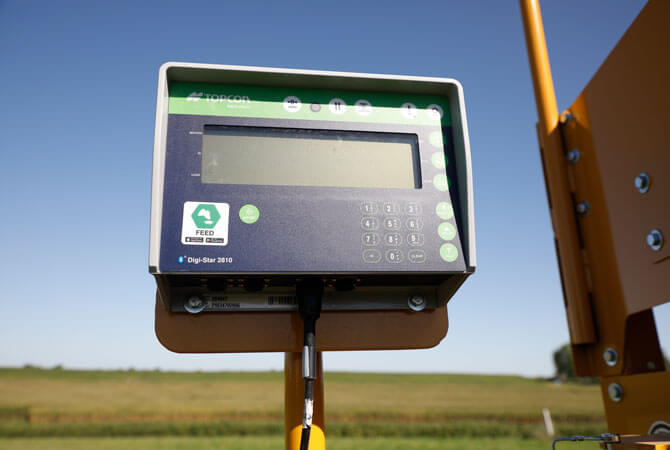

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard

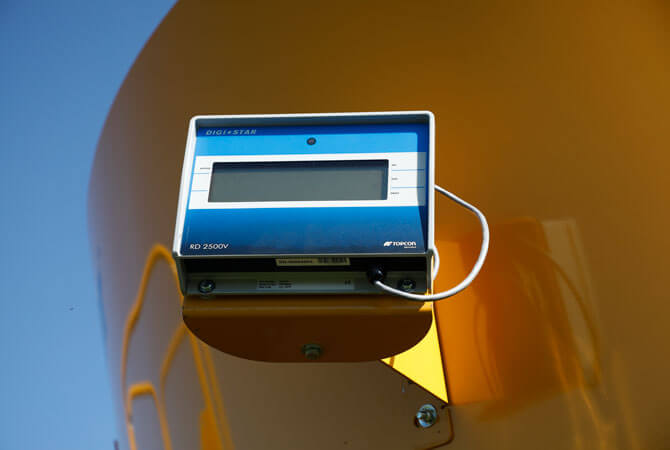

    • Remote Display Standard
