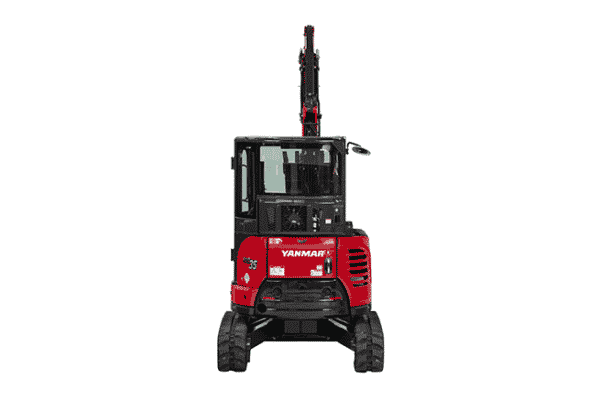

YANMAR Mini Excavator ViO35-6A

Contact us for price

Stock status: Call Store for Availability

Step up to our 3.5-ton class mini excavator and you’ll find the perfect balance of power, capability, comfort, and efficiency to work all-day and increase your bottom line. With a true zero tail swing design ready to work in tight environments, you can add even more capability with available auto-shifting 2-speed travel to quickly move between work areas; blade float functionality for back blading and leveling; and 4-way blade control. And with Tier 4 Final power under the cowl, you’ll not only appreciate our legendary and incredibly quiet work-tough performance, but greater operational efficiency as well. With standard ECO mode and Auto Deceleration, you’ll enjoy up to 20% less fuel consumption than previous models.

Call Us Now

Specs

Engine

This div for css purpose only
Model
3TNV88F-ESBV
3TNV88F-ESBV
This div for css purpose only
Rated Output
24.4 HP / 2,200 rpm
18.2 kW / 2,200 rpm
This div for css purpose only
Type
Water-cooled 4-cycle diesel

Operating Weight

Rubber Track (Canopy)
7,905 lbs
3.58 t
Steel Track (Canopy)
8,124 lbs
3.72 t
Rubber Track (Cabin)
8,214 lbs
3.68 t
Steel Track (Cabin)
8,434 lbs
3.83 t

Performance

Max Digging Force, Bucket / Arm
5,643 / 4,266 lbs
32.1* / 20.4* kN (*without quick coupler)
Traveling Speed, High / Low
2.7 / 1.6 MPH
4.5 / 2.7 km/h
Swing Speed
9.5 RPM
9.5 RPM
Boom Swing Angle, (L / R)
43 / 65
43 / 65

Ground Contact Pressure (Rubber Track)

Canopy
4.80 PSI
33.1 kPa
Cabin
4.97 PSI
34.3 kPa

Hydraulic System

Pump Capacity
9.8 GPM x 2 {Variable displacement pump} 6.9 GPM x 1, 2.9 GPM x 1 {Gear pump}
37.0 (L/min) x 2 {Variable displacement pump} 26.2 (L/min) x 10.8 (L/min) x 1 {Gear pump}
Main Relief Set Pressure
3,205 x 2, 3,133 x 1 PSI
22.1 x 2, 21.6 x 1 MPa

Blade Dimensions

Width
5′ 8″
1,740 mm
Stroke, Raise / Lower from G.L.
1′ 5″ / 1′ 3″
425 mm / 370 mm

Fuel Tank

This div for css purpose only
Capacity
10.8 Gals
41 L
