Specs

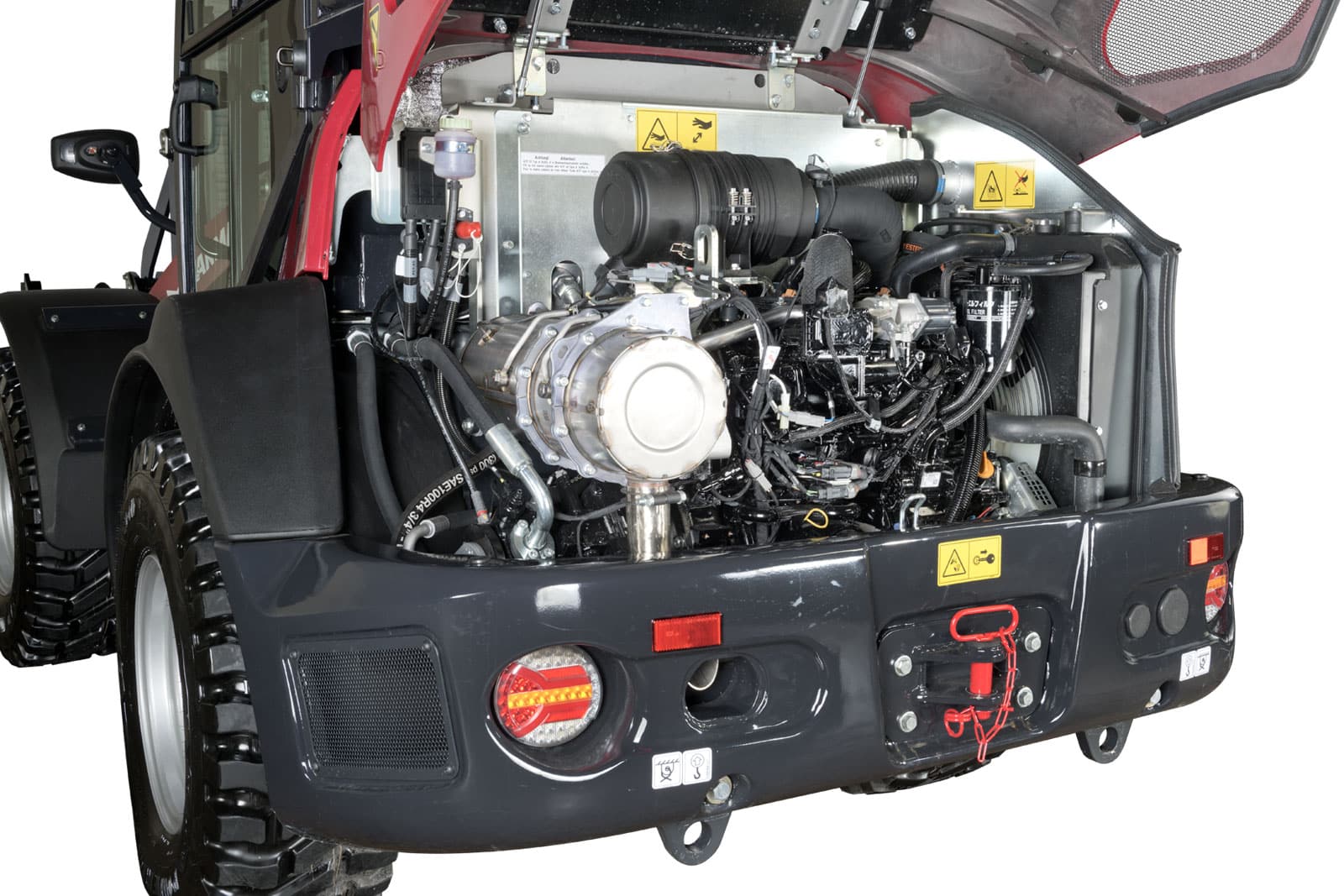

Engine
- Model
- Yanmar 4TNV86CT
- Yanmar 4TNV86CT
- Output
- 47.6 HP / 2,400 rpm
- 35.5 kW / 2,400 rpm
- Displacement
- 127.6 in³
- 2,091 cm³
- Type
- Water-cooled 4-cylinder diesel
- Water-cooled 4-cylinder diesel
Performance
- Standard Bucket Capacity
- 0.92 yd³
- 0.7 m³
- Operating Load
- 2,778 lbs
- 12.36 kN
- Lifting Capacity at Low End
- 7,981 lbs
- 35.5 kN
- Tipping Load – Straight
- 6,636 lbs
- 30 kN
- Tipping Load, Articulated
- 5,864 lbs
- 26 kN
- Breakout Force
- 9,217 lbs
- 41 kN
- Dumping Clearance
- 8’2″
- 2,497 mm
- Traveling Speed – Standard
- 12.4 mph
- 20 km/h
- Traveling Speed – High
- 18.6 mph
- 30 km/h
- Oscillation Angle
- ±10 deg
- ±10 deg
- Turning Radius – Inside Tires
- 6’7”
- 2,002 mm
- Min. Ground Clearance
- 1’5″
- 435 mm
PTO
- Front Hyd. PTO
- 3,626 PSI
- 25,000 kPa
- Front Hyd. PTO
- 16.6 GPM
- 63 L/min
Steering
- Articulate Angle
- ±40 deg
- ±40 deg
- Type
- Fully hydraulic proportional articulated steering
- Fully hydraulic proportional articulated steering
Transmission
- Type
- Hydrostatic
- Hydrostatic
This div for css purpose only
Drives
- Type
- Automatic Drive
- Automatic Drive
This div for css purpose only
Wheels
- Type
- 365/70 R18 EM Powerload – Goodyear
- 365/70 R18 EM Powerload – Goodyear
This div for css purpose only
Brakes
- Type
- Mechanically Actuated Disc Brake on Front Axle
- Mechanically Actuated Disc Brake on Front Axle
This div for css purpose only
Operating Weight
- Canopy
- 9,370 lbs
- 4,250 kg
- Cabin
- 9,370 lbs
- 4,250 kg
Transport Dimensions
- L x W x H
- 16’9” x 5’10” x 8’2”
- 5,100 x 1,780 x 2,490 mm
