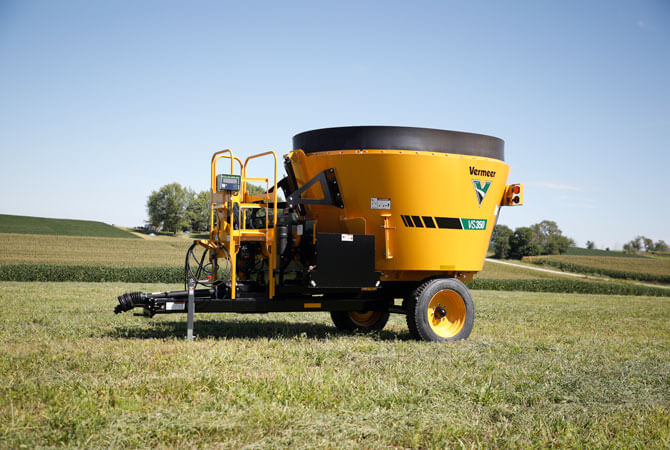

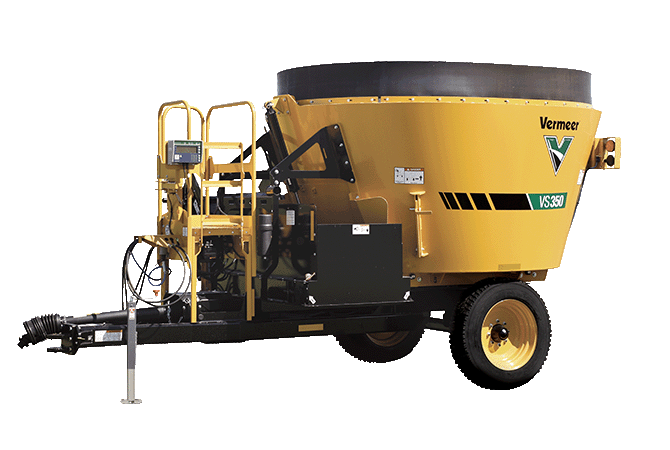

Vermeer VS350 Single-screw Vertical Mixer

Contact us for price

Stock status: Call Store for Availability

Small but mighty, the Vermeer VS350 single-screw vertical mixer has a high screw rpm to minimize mixing time and optimize cleanout. Very little material is left in the tub — a benefit of two bi-pulse kickers plus the leading edge of the screw. This mixer also features a 4-point scale which offers optimal accuracy over a typical 3-point scale found on this size of mixer. This compact machine is ideal for small- to mid-sized operations.

Call Us Now

Specs

  • Dimensions and Weights

    • Loading height - standard 106 in 269.2 cm
    • Machine weight - standard 7550 lbs 3424.6 kg
    • Maximum net load 12000 lbs 5443.1 kg
    • Total length 202 in 513.1 cm
    • Transport width - 50-in folding conveyor extension 111 in 281.9 cm
    • Working width - 50-in folding conveyor extension 130 in 330.2 cm

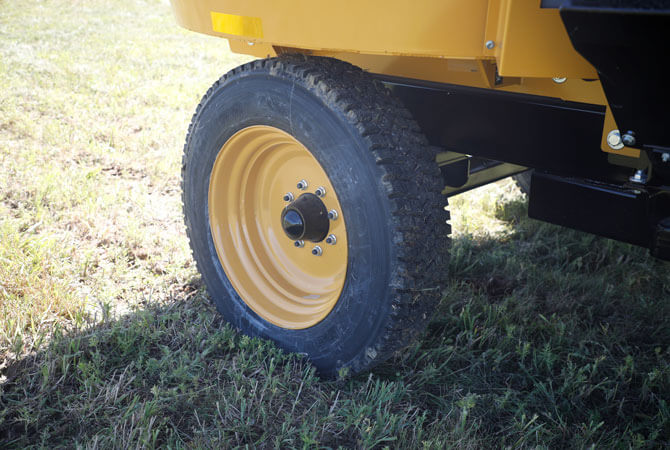

    • Tires (retread) Standard 255/70R-22.5; Optional 14-17.5 skid steer
  • Tub and screws

    • Capacity 350 cu ft 9.9 cu m
    • Number of screws 1
    • Number of knives per screw 5
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material Regular structural steel
    • Floor thickness 1/2 in (12.7 mm)
    • Screw flighting thickness 1/2 in (12.7 mm)
    • Screw flighting material AR200

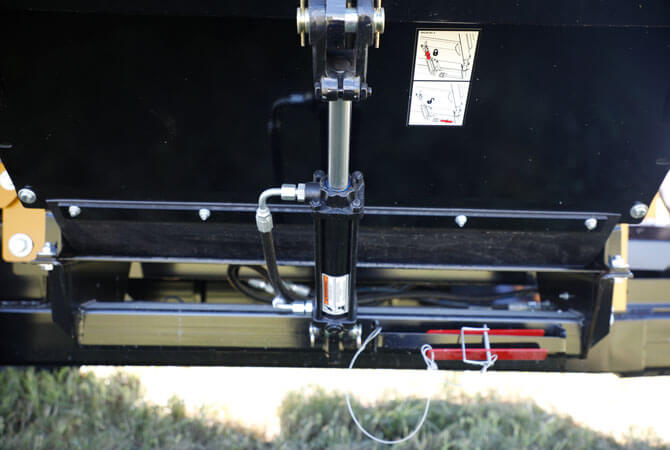

  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
  • Tractor Requirements

    • Minimum PTO horsepower 90 hp (70 kW)
    • Recommended PTO horsepower 100 hp 74.6 kw
  • Drive System

    • Driveline Standard: 1,000 rpm, CV; Optional: 540 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 1,000 rpm configuration: 48 (1-speed), 48/32 (2-speed); 540 rpm configuration: 40 (1-speed); 40/27 (2-speed)

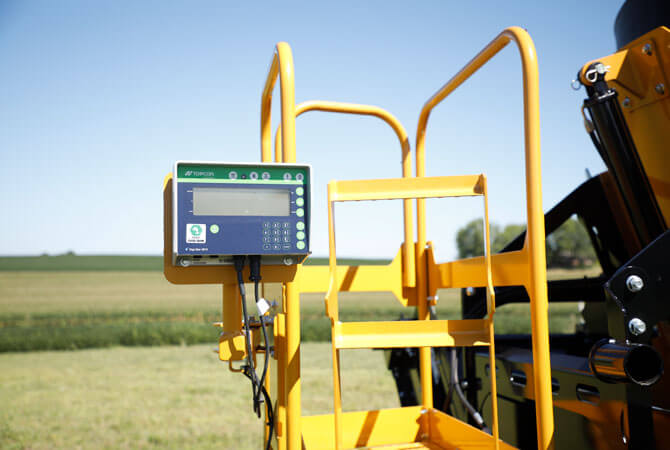

  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard
