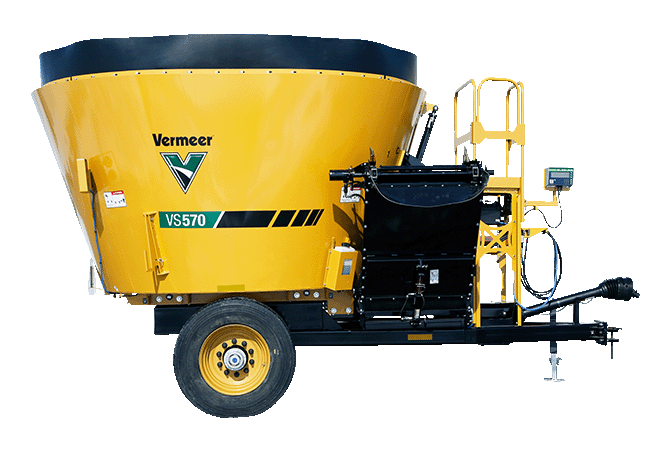

Vermeer VS570 Single-screw Vertical Mixer

Contact us for price

Stock status: Call Store for Availability

With a 125-in (317.5-cm) loading height, the VS570 works well for those wanting to get into the 600-ft3 (169.99-m3) volume range without purchasing a twin-screw vertical mixer. Heavy-duty features like abrasion-resistant AR200 steel on the tub walls and screw flighting contribute to long-lasting performance. As the largest single-screw vertical mixer in the Vermeer lineup, this mixer could be the right fit for your operation.

Call Us Now

Specs

  • Dimensions and Weights

    • Loading height - standard 125 in 317.5 cm
    • Machine weight - standard 11180 lbs 5071.2 kg
    • Maximum net load 17000 lbs 7711.1 kg
    • Total length 218 in 553.7 cm
    • Transport width - 50-in folding conveyor extension 121 in 307.3 cm
    • Working width - 50-in folding conveyor extension 140 in 355.6 cm
    • Tires (retread) Standard 445/50R-22.5; Optional 445/50R-22.5 lug
  • Tub and screws

    • Capacity 570 cu ft 16.1 cu m
    • Number of screws 1
    • Number of knives per screw 7
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material AR200
    • Floor thickness 3/4 in (19.1 mm)
    • Screw flighting thickness 5/8 in (15.9 mm)
    • Screw flighting material AR200
  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
  • Tractor Requirements

    • Minimum PTO horsepower 130 hp (97 kW)
    • Recommended PTO horsepower 150 hp 111.9 kw
  • Drive System

    • Driveline 1,000 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 39 (1-speed); 39/26 (2-speed)
  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard
