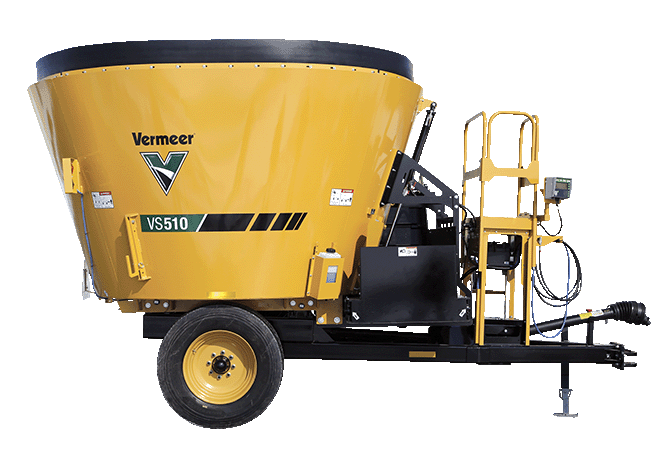

Vermeer VS510 Single-screw Vertical Mixer

Contact us for price

Stock status: Call Store for Availability

The Vermeer VS510 single-screw vertical mixer is capable of processing 6-ft x 5-ft (1.8-m x 1.5-m) large round bales. With a standard full set of sharp, hard-surfaced knives, as well as a durable screw designed for maximum mixing ability, this mixer can evenly disperse feed for optimal feed quality and operator efficiencies.

Call Us Now

Specs

  • Dimensions and Weights

    • Loading height - standard 120 in 304.8 cm
    • Machine weight - standard 9860 lbs 4472.4 kg
    • Maximum net load 15000 lbs 6803.9 kg
    • Total length 214 in 543.6 cm
    • Transport width - 50-in folding conveyor extension 118 in 299.7 cm
    • Working width - 50-in folding conveyor extension 137 in 348 cm
    • Tires (retread) Standard 445/50R-22.5; Optional 445/50R-22.5 lug; Optional 255/70R-22.5 dual

  • Tub and screws

    • Capacity 510 cu ft 14.4 cu m
    • Number of screws 1
    • Number of knives per screw 7
    • Tub wall thickness 1/4 in (6.4 mm)
    • Tub wall material AR200
    • Floor thickness 3/4 in (19.1 mm)
    • Screw flighting thickness 5/8 in (15.9 mm)
    • Screw flighting material AR200

  • Discharge System

    • Discharge style Front conveyor
    • Discharge Direction Left or right
    • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
    • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift

  • Tractor Requirements

    • Minimum PTO horsepower 120 hp (89 kW)
    • Recommended PTO horsepower 130 hp 96.9 kw

  • Drive System

    • Driveline Standard: 1,000 rpm, CV; Optional: 540 rpm, CV
    • Two-speed gearbox Optional
    • Torque Protection Shear bolt
    • Screw rpm 39 (1-speed); 39/26 (2-speed)

  • Scale system

    • Scale display Digi-Star EZ2810-BT
    • Number of weigh bars 4
    • Bluetooth connectivity Standard
