Specs

• Dimensions and Weights

  • Loading height - standard 105 in 266.7 cm
  • Machine weight - standard 13625 lbs 6180.2 kg
  • Maximum net load 18000 lbs 8164.7 kg
  • Total length 285 in 723.9 cm
  • Transport width - 50-in folding conveyor extension 113 in 287 cm
  • Working width - 50-in folding conveyor extension 130 in 330.2 cm
  • Tires (retread) Standard 445/50R-22.5; Optional 445/50R-22.5 lug

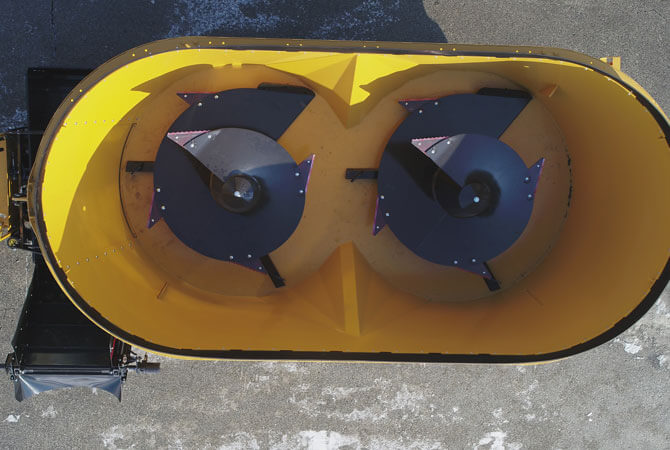

• Tub and screws

  • Capacity 660 cu ft 18.7 cu m
  • Number of screws 2
  • Number of knives per screw 5
  • Tub wall thickness 1/4 in (6.4 mm)
  • Tub wall material Regular structural steel
  • Floor thickness 5/8 in (15.9 mm)
  • Screw flighting thickness 1/2 in (12.7 mm)
  • Screw flighting material AR200

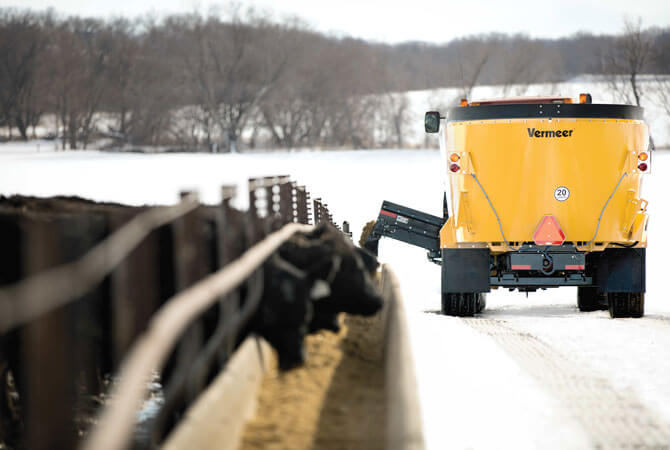

• Discharge System

  • Discharge style Front conveyor
  • Discharge Direction Left or right
  • Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
  • Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift

• Tractor Requirements

  • Minimum PTO horsepower 150 hp (110 kW)
  • Recommended PTO horsepower 170 hp 126.8 kw

• Drive System

  • Driveline 1,000 rpm, CV
  • Two-speed gearbox Standard
  • Torque Protection Shear bolt
  • Screw rpm 48/32 (2-speed)

• Scale system

  • Scale display Digi-Star EZ2810-BT
  • Number of weigh bars 4

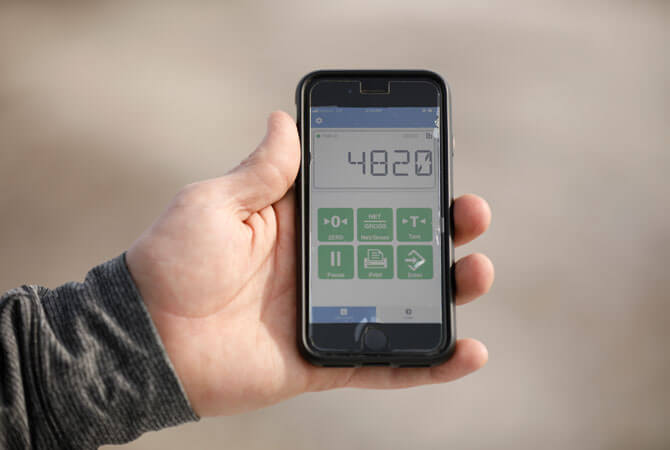

  • Bluetooth connectivity Standard
