Specs
Dimensions and Weights
- Loading height - standard 123 in 312.4 cm
- Machine weight - standard 15580 lbs 7067 kg
- Maximum net load 21000 lbs 9525.4 kg
- Total length 277 in 703.6 cm
- Transport width - 50-in folding conveyor extension 113 in 287 cm
- Working width - 50-in folding conveyor extension 130 in 330.2 cm

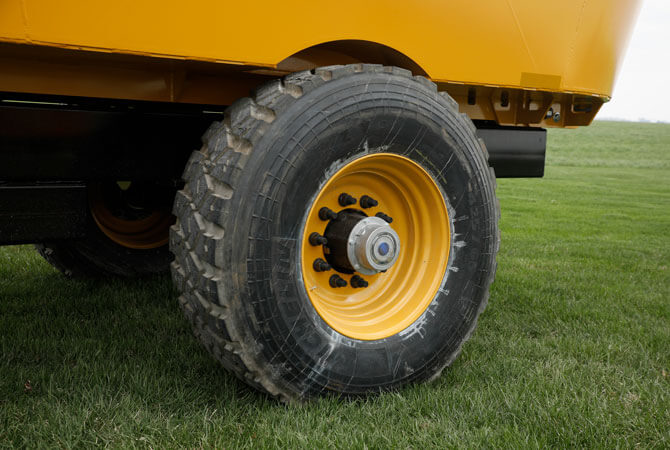

- Tires (retread) Standard 425/65R-22.5; Optional 255/70R-22.5 dual

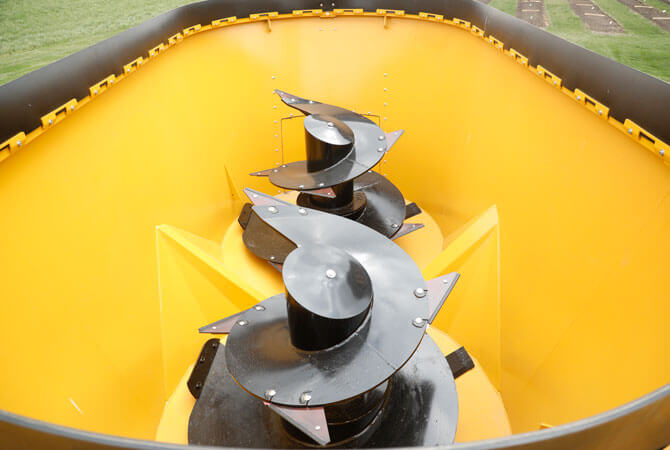

Tub and screws
- Capacity 750 cu ft 21.2 cu m
- Number of screws 2
- Number of knives per screw 7
- Tub wall thickness 1/4 in (6.4 mm)
- Tub wall material AR200
- Floor thickness 3/4 in (19.1 mm)
- Screw flighting thickness 5/8 in (15.9 mm)
- Screw flighting material AR200
Discharge System
- Discharge style Front conveyor
- Discharge Direction Left or right
- Folding conveyor extension length 25 in/40 in/50 in (64 cm/100 cm/130 cm)
- Bi-directional conveyor length 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift
- Rear discharge door Optional
Tractor Requirements
- Minimum PTO horsepower 150 hp (2-speed) (110 kW)
- Recommended PTO horsepower 180 hp 134.2 kw
Drive System
- Driveline 1,000 rpm, CV
- Two-speed gearbox Optional
- Torque Protection Shear bolt
- Screw rpm 39 (1-speed); 39/26 (2-speed)
Scale system

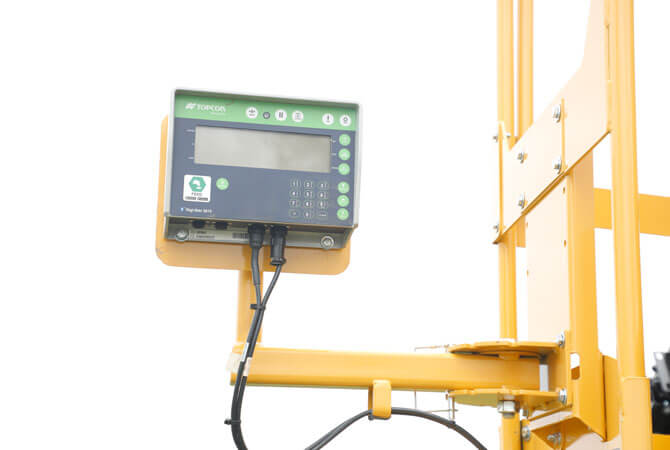

- Scale display Digi-Star EZ2810-BT
- Number of weigh bars 4
- Bluetooth connectivity Standard
- Remote Display Optional
